We carefully wrapped the mini pc and the parts with a waterproof bag,then fix it in the inner carton box with a foam board.Put the inner box into the outer box, and then seal the outer box with tape .
Processor | Intel Celeron 2955U (2 core 2 threads, 2M Cache, 1.40 GHz ,TDP: 15 W) Intel Core i3 4010Y/4012Y (2 core 4 threads, 3M Cache, 1.30 GHz ,TDP: 11.5 W) Intel Core i3 4005U (2 core 4 threads, 3M Cache, 1.70 GHz ,TDP: 15 W) Intel Core i3 5005U (2 core 4 threads, 3M Cache, 2.00 GHz ,TDP: 15 W) Intel Core i5 4200Y (2 core 4 threads, 3M Cache, 1.40 GHz, up to 1.90 Ghz , TDP: 11.5W) Intel Core i5 4200U (2 core 4 threads, 3M Cache, 1.60 GHz, up to 2.60 Ghz , TDP: 15W) Intel Core i5 5200U (2 core 4 threads, 3M Cache, 2.20 GHz, up to 2.70 Ghz , TDP: 15W) Intel Core i5 5300U (2 core 4 threads, 3M Cache, 2.30 GHz, up to 2.90 Ghz , TDP: 15W) Intel Core i7 4500Y (2 core 4 threads, 4M Cache, 1.70 GHz, up to 2.90 Ghz , TDP: 11.5W) Intel Core i7 4500U (2 core 4 threads, 4M Cache,1.80GHz, up to 3.00 GHz, TDP: 15W) Intel Core i7 5500U (2 core 4 threads, 4M Cache, 2.40GHz, up to 3.00 GHz, TDP: 15W) |
Integrated Graphics | Intel H-D Graphics |

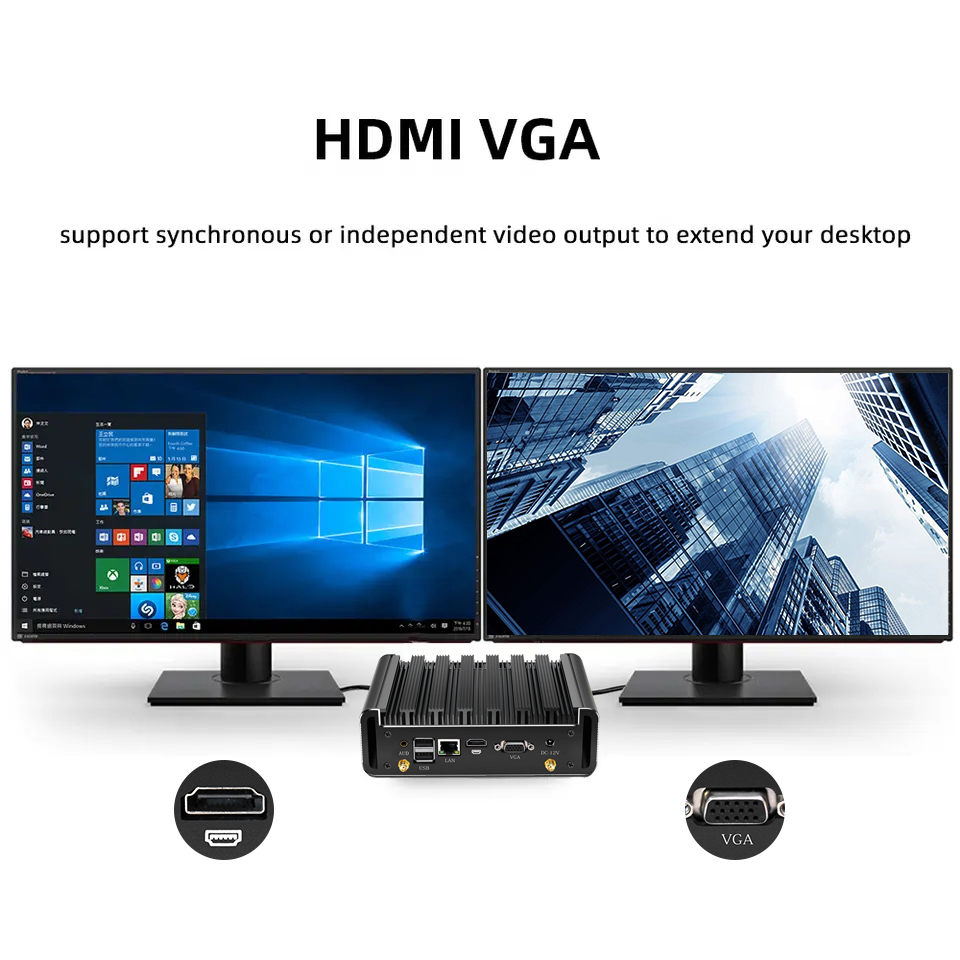

Dual Display | VGA:Maximum resolution 1920*1080@60Hz H-DMI:Maximum resolution 2560X1600@60Hz Dual Video output: support synchronous or independent display |
Memory | 2GB/4GB/8GB/16GB DDR3L 1333/1600MHz 1*204-pim SO-DIMM 5th Gen CPU can be max up to 16GB DDR3L |
Hard Disk | 1*Full-Height mSATA 32GB/64GB/128GB/256GB/512GB/1TB/2TB mSATA SSD Support 1*mSATA SSD+1*2.5" HDD/SSD SATA |
Support OS | Win11/10/8/7/Linux/Ubuntu/CENTOS, etc. |
Port | 4 x USB2.0+4 x USB3.0,1 x LAN,1 x H-DMI,1 x VGA, 1x Audio |
Audio | Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out |
WiFi | Inner Module with WiFI/WiFi&BT; External Antennas |
Power Requirement | DC 12V 3A/36W or 12V 5A/60W(AC TO DC,100~240V) |
Working Environment | Operating Temperature ‘-20-65℃ Storage Temperature 15℃-35℃ Relative Humidity 5%~95% (non-condensing) |
Dimension | 180*128*55mm |
