Model NO. | Prodesk480g9mt | Memory | High-Speed |
Quality | Durable | Color | Black |
Transport Package | Carton | Specification | 15.5 x 30.8 x 33.7 cm |
Trademark | / | Origin | China |
Available Operating Systems | Windows 11 Pro |
Windows 11 Pro Education | |
Windows 11 Home - recommends Windows 11 Pro for business | |
Windows 11 Home Single Language - recommends Windows 11 Pro for business | |
Windows 11 Pro (Windows 11 Enterprise available with a Volume Licensing Agreement) | |
Windows 10 Pro (available through downgrade rights from Windows 11 Pro) | |
FreeDOS | |
Processor family | Intel® Pentium® processor; Intel® Celeron® processor; 12th Generation Intel® Core™ i7 processor; 12th Generation Intel® Core™ i3 processor; 12th Generation Intel® Core™ i5 processor |
Available Processors | Intel® Core™ i5-12600 with Intel® UHD Graphics (3.3 GHz base frequency, up to 4.8 GHz with Intel Turbo Boost Technology, 18 MB L3 cache, 6 cores, 12 threads), supports Intel® vPro® Technology; Intel® Core™ i5-12500 with Intel® UHD Graphics (3.0 GHz base frequency, up to 4.6 GHz with Intel Turbo Boost Technology, 18 MB L3 cache, 6 cores, 12 threads), supports Intel® vPro® Technology; Intel® Core™ i5-12400 with Intel® UHD Graphics (2.5 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 18 MB L3 cache, 6 cores, 12 threads), supports Intel® vPro® Technology; Intel® Core™ i3-12300 with Intel® UHD Graphics (3.5 GHz base frequency, up to 4.4 GHz with Intel Turbo Boost Technology, 12 MB L3 cache, 4 cores, 8 threads); Intel® Core™ i3-12100 with Intel® UHD Graphics (3.3 GHz base frequency, up to 4.3 GHz with Intel Turbo Boost Technology, 12 MB L3 cache, 4 cores, 8 threads); Intel® Pentium® Gold G7400 with Intel® UHD Graphics (3.7 GHz base frequency, 6 MB L3 cache, 2 cores, 4 threads); Intel® Celeron® G6900 with Intel® UHD Graphics (3.4 GHz base frequency, 4 MB L3 cache, 2 cores, 2 threads); Intel® Core™ i7-12700 with Intel® UHD Graphics (2.1 GHz base frequency, up to 4.9 GHz with Intel Turbo Boost Technology, 25 MB L3 cache, 12 cores, 20 threads), supports Intel® vPro® Technology |
Chipset | Intel® Q670 |
Form factor | Tower |
Maximum memory | 64 GB DDR4-3200 SDRAM |
Transfer rates up to 3200 MT/s. | |
Memory slots | 2 DIMM |
Internal storage | 500 GB up to 2 TB SATA HDD |
up to 500 GB SATA SED Opal 2 HDD | |
256 GB up to 1 TB PCIe® NVMe™ M.2 SSD | |
256 GB up to 2 TB PCIe® NVMe™ TLC M.2 SSD | |
256 GB up to 512 GB PCIe® NVMe™ SED Opal 2 TLC M.2 SSD | |
Optical drive | 9.5 mm Slim DVD-Writer; 9.5 mm Slim DVD-ROM |
Available Graphics | Integrated: Intel® UHD Graphics 730; Intel® UHD Graphics 770 Discrete: NVIDIA® Quadro® T400 (2 GB GDDR6 dedicated) |
Audio | Realtek ALC3252 codec, universal audio jack with CTIA and OMTP headset support |
Expansion slots | 1 M.2 2230; 1 M.2 2280; 1 PCIe x1; 1 PCI; 1 PCIe 4 x16 10 (1 M.2 2230 slot for WLAN and 1 M.2 2280 slot for storage.) |
Memory card device | 1 SD 4.0 card reader |

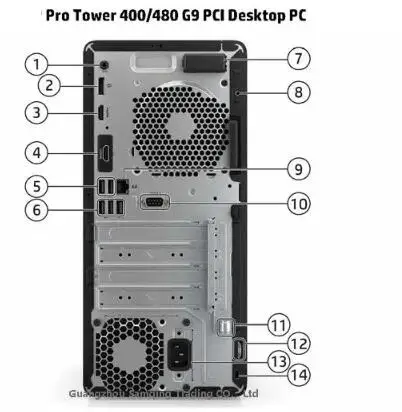

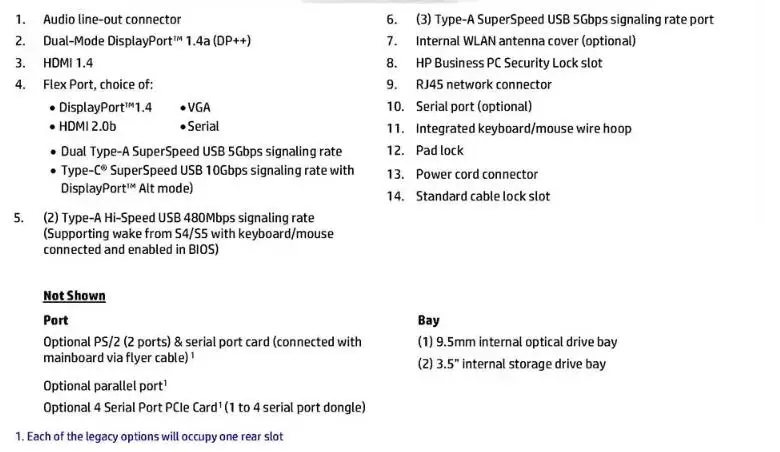

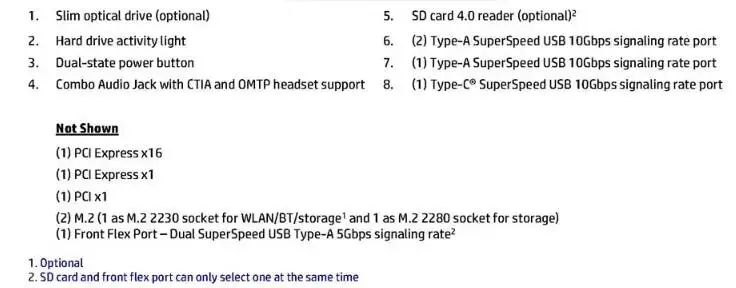

Ports and Connectors | Front: 1 headphone/microphone combo; 1 SuperSpeed USB Type-C® 10Gbps signaling rate; 3 SuperSpeed USB Type-A 10Gbps signaling rate ; |
Rear: 1 audio-out; 1 power connector; 1 RJ-45; 1 HDMI 1.4; 3 SuperSpeed USB Type-A 5Gbps signaling rate; 1 DisplayPort™ 1.4; 2 USB Type-A 480Mbps signaling rate ; | |
Optional Ports: Add-on card - choose one of the following options: 4x Serial, serial and PS/2 ports combination or parallel; Add-on port: 1 serial; Flex IO rear port - choose one of the | |
following options: 1 DisplayPort™ 1.4, 1 VGA, 1 HDMI 2.0b, 1 serial, 1 SuperSpeed USB Type-C® 10Gbps signaling rate (alternate mode DisplayPort™), 1 Dual SuperSpeed USB Type-A 5Gbps signaling rate; Flex IO front port - 1 Dual SuperSpeed USB Type-A 5Gbps signaling rate27 | |
Input devices | PS/2 Business Slim Keyboard; USB Business Slim SmartCard CCID Keyboard; 125 Wired Keyboard; 125 Antimicrobial Wired Keyboard; 655 Wireless Keyboard and mouse combo; USB 320K Keyboard ; PS/2 mouse; Wired Desktop 320M mouse; 125 Wired Mouse; 128 Laser Wired Mouse; 125 Antimicrobial Wired Mouse ; |
Communications | LAN: Integrated Intel® I219LM GbE LOM; Intel® I225-T1 PCIe® 2.5 GbE 11; WLAN: Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.2 M.2 combo, vPro®; Realtek Wi-Fi 6 RTL8852AE 802.11a/b/g/n/ax (2x2) and Bluetooth® 5.2 M.2 combo; Realtek Wi-Fi 6 RTL8821CE 802.11a/b/g/n/ac (1x1) and Bluetooth® 4.2 M.2 combo; Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.2 M.2 combo, non-vPro® ; |
Drive Bays | Two 3.5" HDD |
Environmental | Operating temperature: 10 to 35°C; Operating humidity: 10 to 90% RH; |
Available software | Smart Support |
Security management | Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certied)(FIPS 140-2 Level 2 Certied); Secure Erase; Sure Click; Absolute Persistence module; Sure Admin; Tamper Lock; Sure Start Gen7; Sure Sense2; |
Security Software Licenses | Wolf Pro Security Edition |
Management features | Client Catalog (download); Driver Packs (download); Image Assistant (download); Client Management Script Library (download); Manageability Integration Kit Gen 4 (download) |
Power | 180 W internal power supply, up to 90% efficiency, active PFC; 400 W internal power supply, up to 92% efficiency, active PFC; 260 W internal power adapter, up to 92% efficiency, active PFC |
Dimensions | 15.5 x 30.8 x 33.7 cm |
Weight | 5.31 kg (Weight will vary by configuration) |
Ecolabels | EPEAT® registered |
