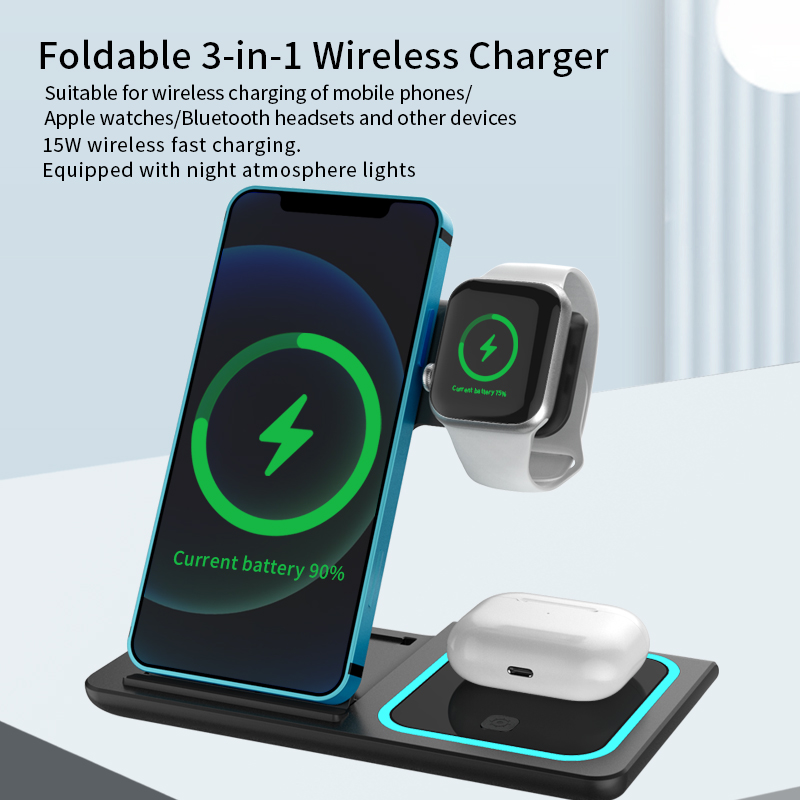

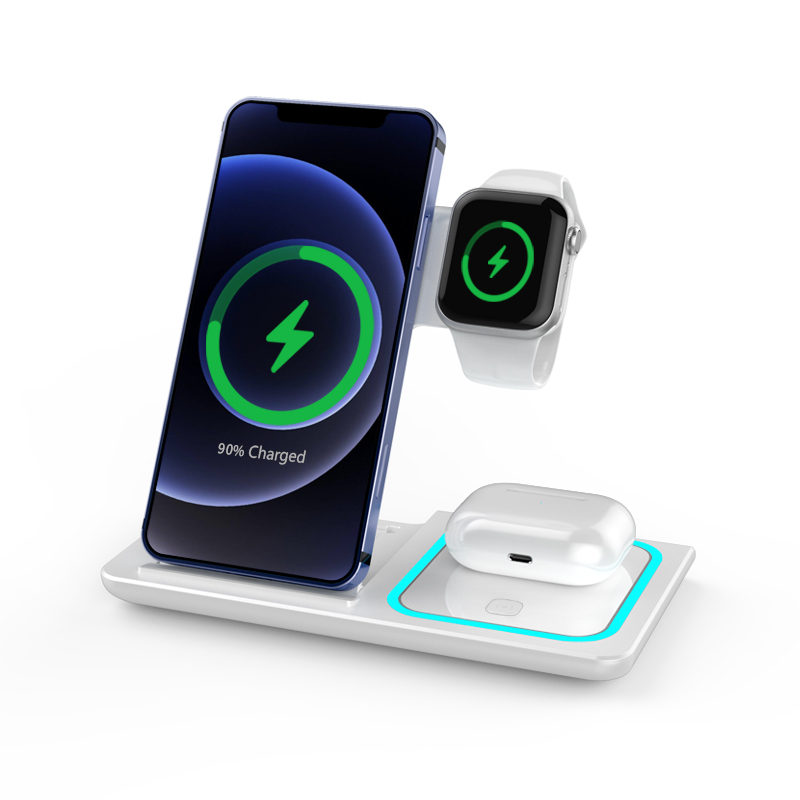

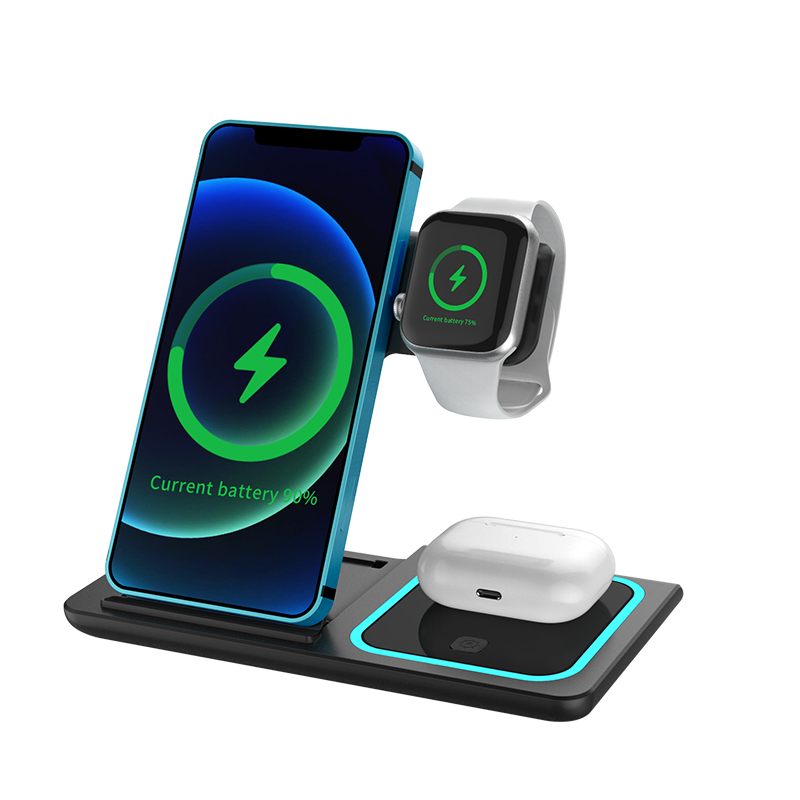

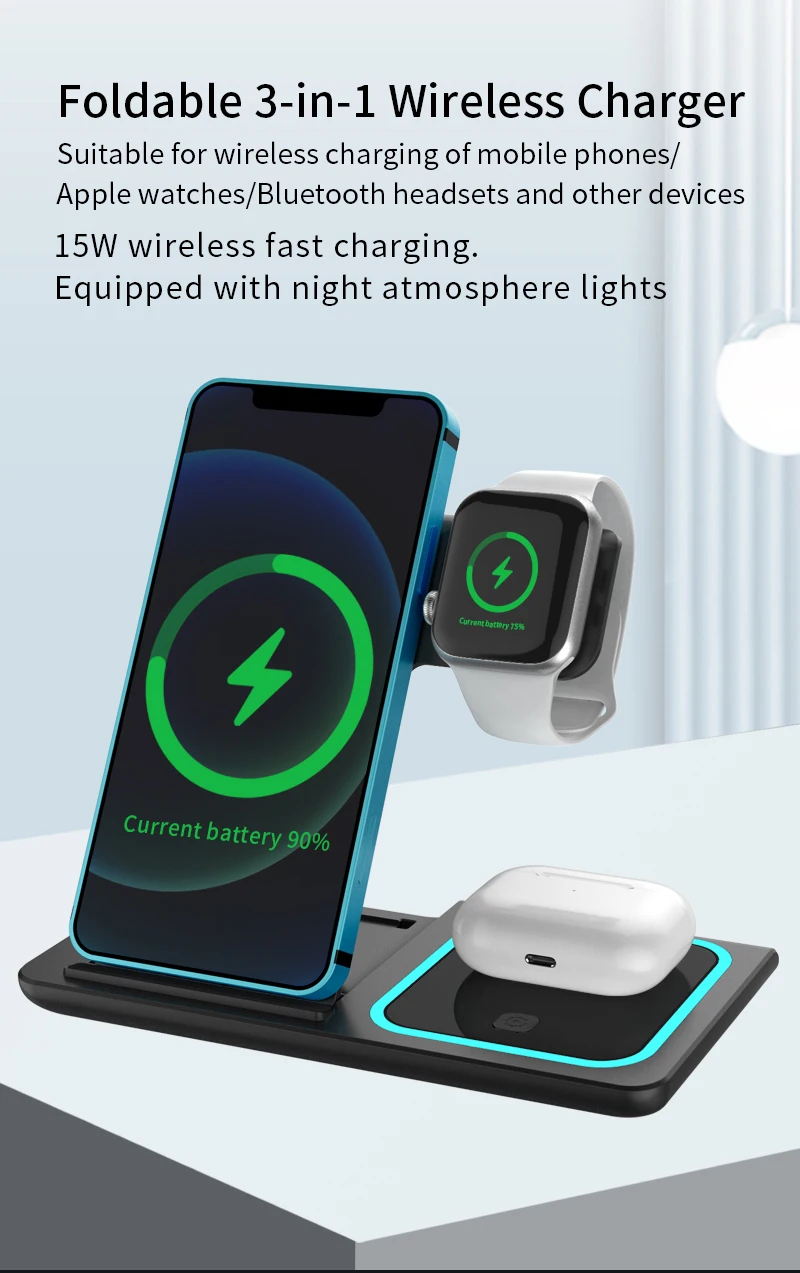

3 In 1 15w Fast Charge Wireless Charger Stand Multifuncion Qi Wireless Charging Holder For Mobile Phone Watch Earphone
(0
reviews)
Estimate Shipping Time:
3 Days
Sold by:
Inhouse product
Inhouse product
Price:
$21.00
/Pc
Refund:
Share:
Top Selling Products
-
G2000 Women Belted Dress
$53.90
Products Descripition
Specification | ||
Model | 455 3-in-1 magnetic wireless charging bracket | |

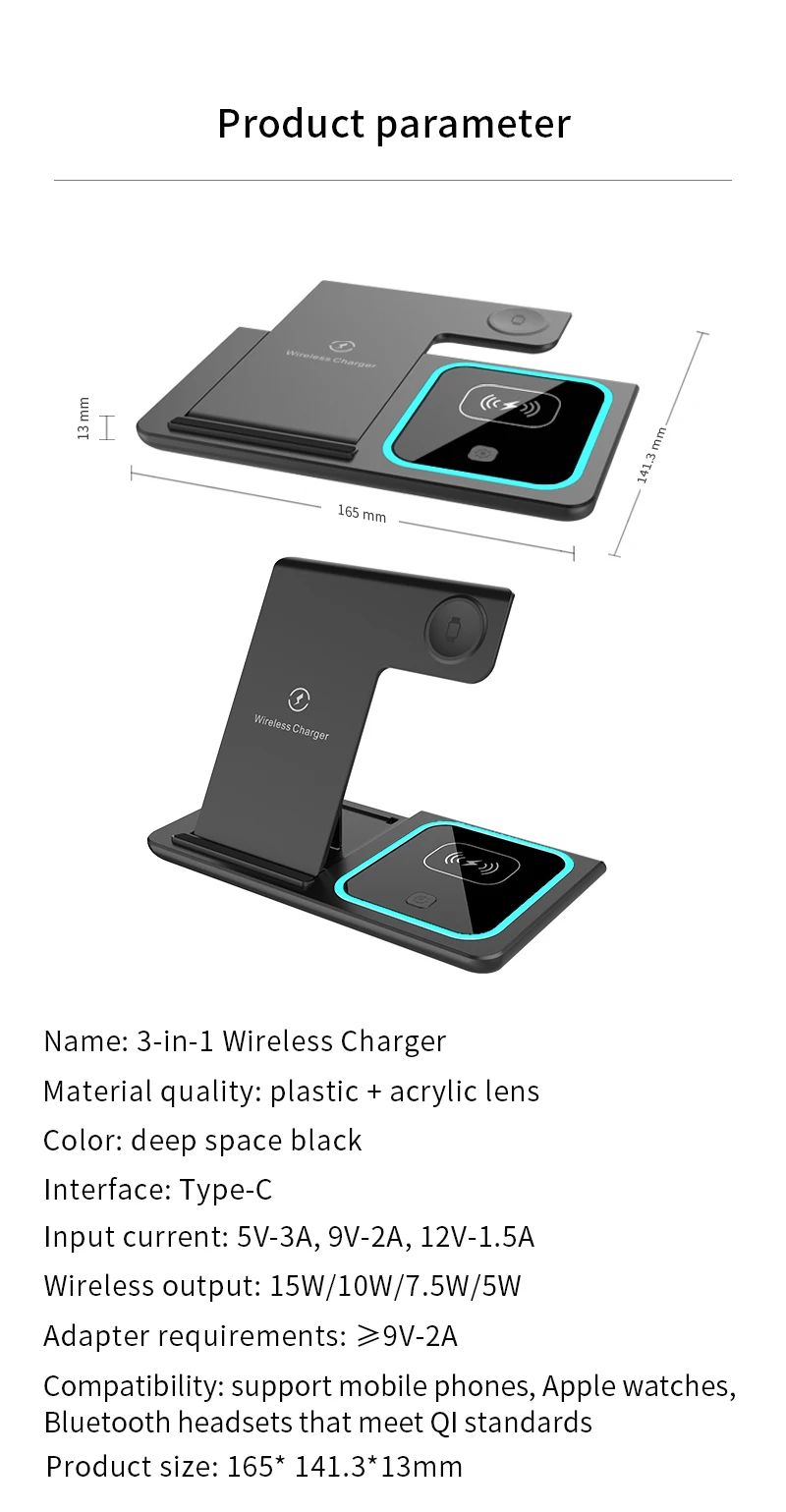

Size / Weight | 165mm*141.3mm*13mm; N.W:197g | |
Material | Plastic + Acrylic Lens | |
Output | Mobile phone wireless charging power : 5 W / 7.5 W / 10 W / 15 W Watch wireless charging power : 2W Earphone wireless charging power : 3W | |
Input | 9V/2A | |
Temperature\ Humidity range | Working Temperature: 0~45℃, Storage Temperature : -10~45℃, Working Humidity: less than 70%, Storage Humidity: less than 70% | |
Fast Charge Protocol | Compatible with EPP quick charge agreement | |

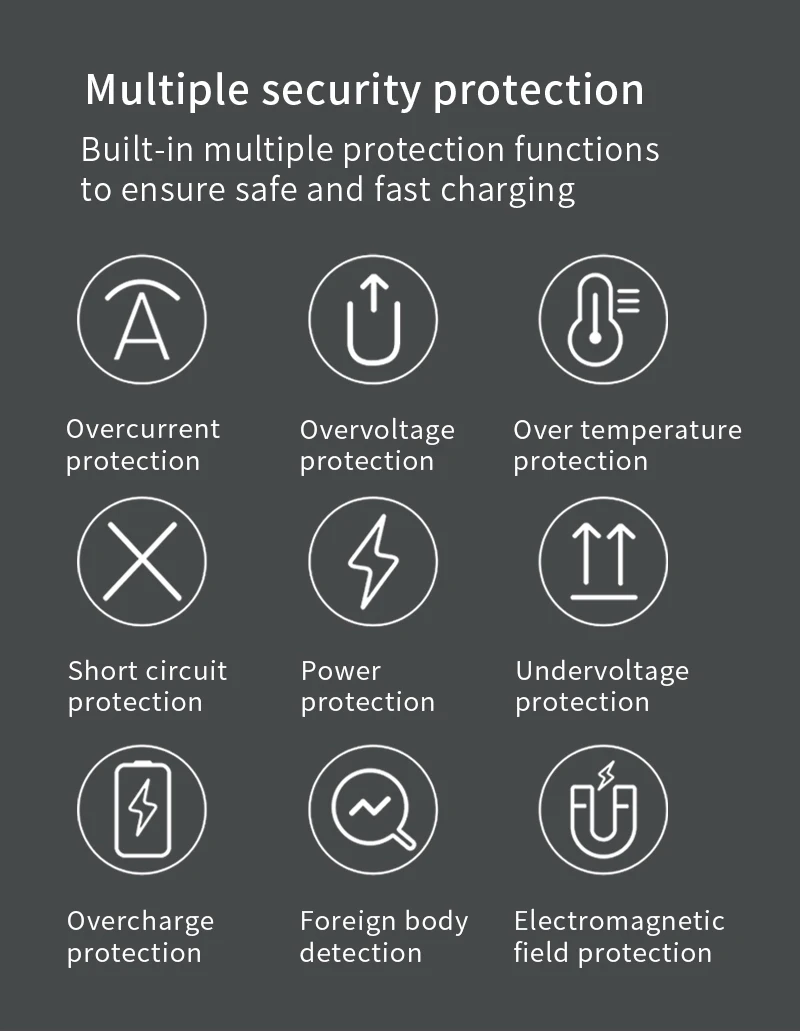

Protective | Product has under-voltage protection/Over-current protection/ Over temperature protection/ Receive partial multiple security protection | |
Standard Features on All Products
1.Our standard configuration is the top configuration of others.

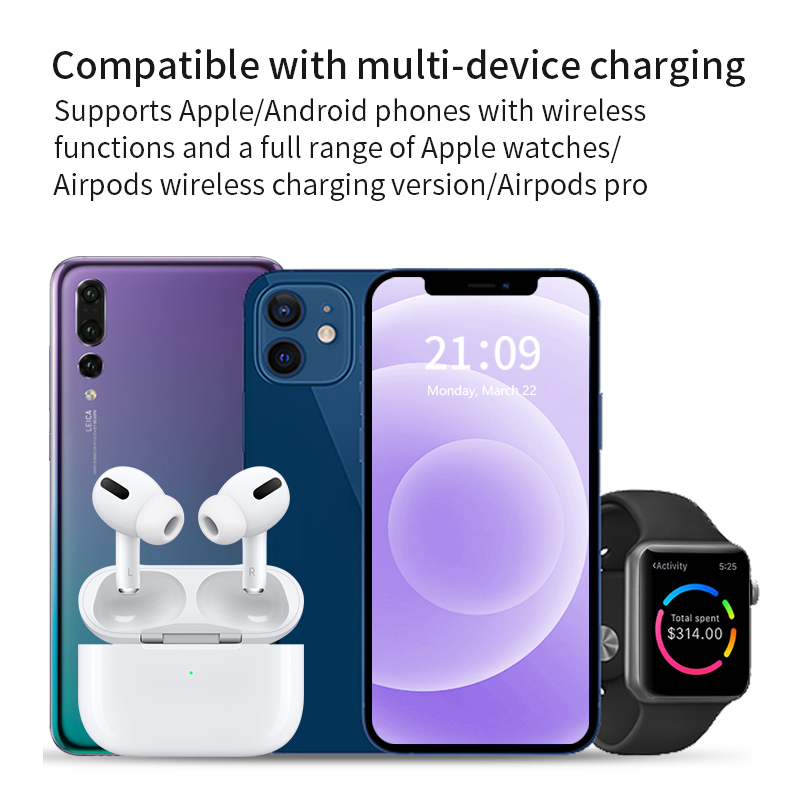

3.Not just charging mobile phones, watches with wireless charging, earphones, etc., we can support them all. Because our productsare compatible with almost all wireless charging protocols, and wealso provide customized services.
4. Strict product quality management to ensure that every product is safe and of high quality.
1.Our standard configuration is the top configuration of others.
2. All products have undergone strict testing. From development to production, we make every product with our hearts.
3.Not just charging mobile phones, watches with wireless charging, earphones, etc., we can support them all. Because our productsare compatible with almost all wireless charging protocols, and wealso provide customized services.
4. Strict product quality management to ensure that every product is safe and of high quality.

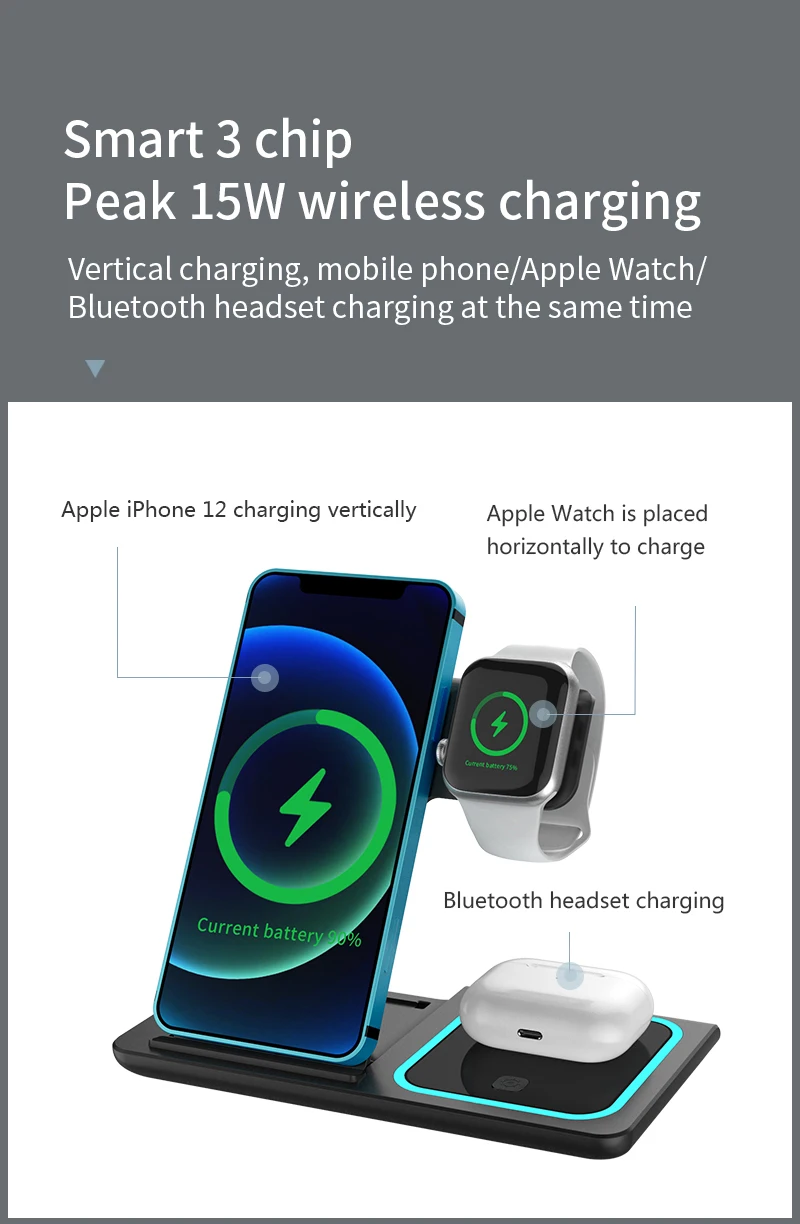

4 in 1 charger, one-stop charging equipment.

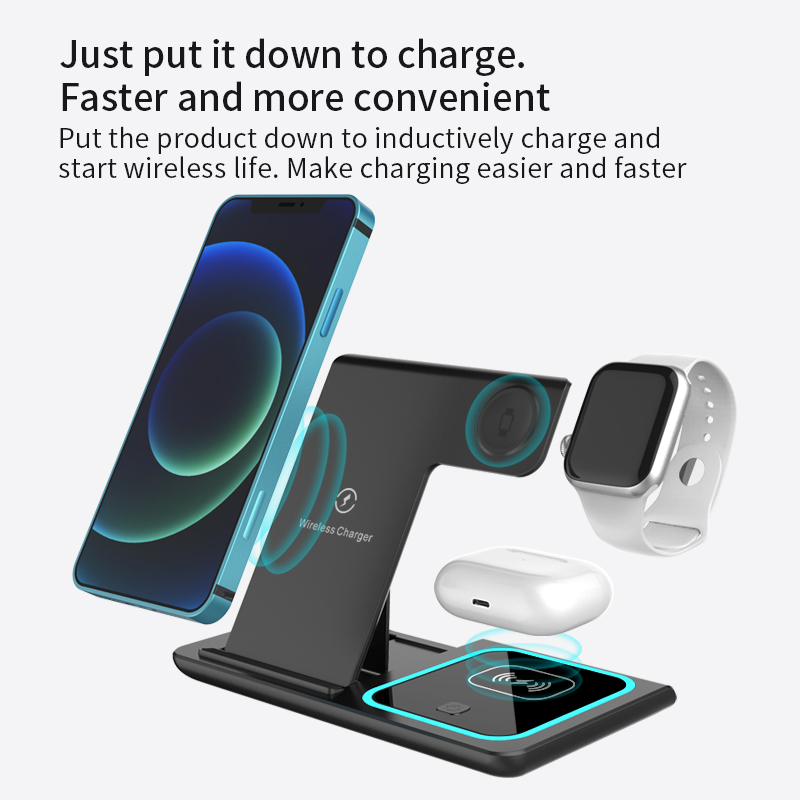

It is used for fast charging of three kinds of electronic products, and it supports charging with phone shell.
It is used for fast charging of three kinds of electronic products, and it supports charging with phone shell.
Type | Output Power | Battery from 0% to 100% | Ambient Temp | AVG Temp | Max Temp | Min Temp |
15W Test Module | 15W | - | 33.5℃ | 61.14℃ | 62.56℃ | 33.8℃ |
Test for Samsung S6 | 10W | 131min | 33.33 | 37.11 | 39.26 | 34.06 |
Test for iPhone 12min | 7.5W | 178min | 33.33 | 30.96 | 38.87 | 30.85 |
Item | Test Condition | Standard |
QC fast charge test | Power the product with QC3.0 18W adapter, and place the corresponding mobile phone on the board coil | The voltage of the charger terminal rises to 9V, and there is an input current of more than 300mA, which means the product enters the fast charging mode. |
PD fast charge test | Power the product with PD3.0 18W adapter, and place the corresponding mobile phone on the board coil | Judgment standard: The voltage of the charger terminal rises to 9V, and there is an input current of more than 300mA, which means the product enters the fast charging mode. |
Wireless charging no-load power consumption | Power the product with QC/PD adapter (without receiving module), test the no-load standby power consumption | ≤0.6W |
Wireless charging efficiency | Use 5V 2A power supply to power the product, use TI 51020 receiving module to carry 500mA and 1000mA current, and test the board end efficiency when the distance between the receiving and transmitting coils is 3mm. | Efficiency≧67% at 500mA output Efficiency≧70% at 1000mA output |
Wireless charging output no-load voltage | Use the TI 51020 receiver module to test the output voltage (this voltage is determined by the receiver module) | 4.85V-5.25V |
Wireless charging output with load current | Use the QC/PD adapter to power the product, use the TI51020 receiving module to connect the electronic load, and test the output load capacity of the product | 700mA-1250mA |
Wireless charging rated output power | Product rated load capacity | 7.5W (Apple Protocol), 10W (Samsung Protocol), 5W/15W (QI Protocol) |
Wireless charging induction distance | The communication distance between the receiving coil and the transmitting coil, the reliable communication distance is within 6mm, and the limit distance is 8mm | 6mm |
Wireless Charged Foreign Object Detection (FOD) | Use the QC/PD adapter to supply power to the product, place a one-dollar coin in the middle of the induction coil of the product or place a one-dollar coin in the middle of the transmitting coil when the product is loaded. | Product shut down output, into protection state |
