Description reviews

Mini Pc Display

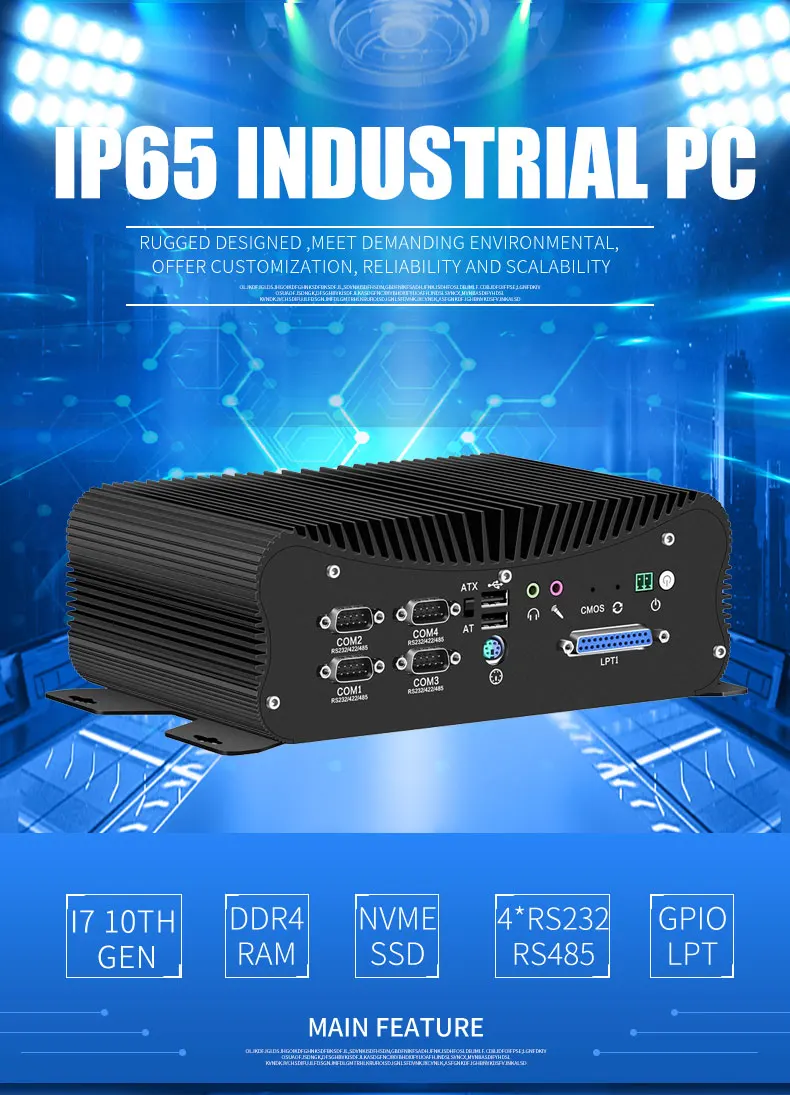

An industrial PC (an IPC or industrial computer) is a rugged solution designed to meet demanding environmental requirements, such
as protection from liquids and dust, extreme temperatures, and high shock and vibration.

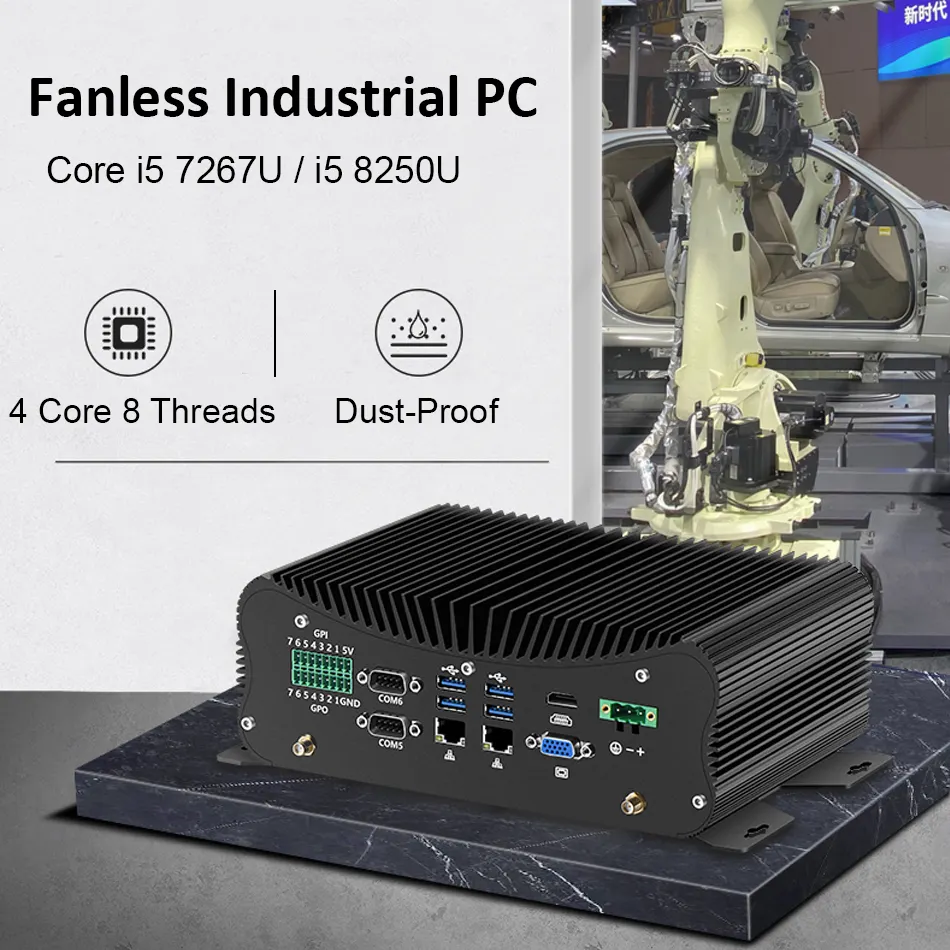

Having an elegant and contemporary design, the H45G is hands down the best looking affordable industrial PC you can buy right now.
Its front panel has a brushed finish and a minimalistic design with 2 USB2.0/ PS/2/ Serial port/ SPK/ MIC/ LPT/ Switch extension
terminal. Other standard I/O ports, like USB3.0, Ethernet port, RS232 COM port and HD& VGA, GPIO , are located at the back. Our
recommend configuration of the HLY H45G comes with an Intel Core i7 i5 i3 7th 8th 10th Gen CPU, paired with DDR4 slot, 4G, 8G 16G
RAM for choice and M.2 NVME +mSATA +2.5'HDD/SSD(60G, 120G, 240G，etc. for choice)
Support running win10/7/8/Linux, the computer also features support mPCIe WIFI 802.11ac and Bluetooth 4.0 for wireless
connectivity.

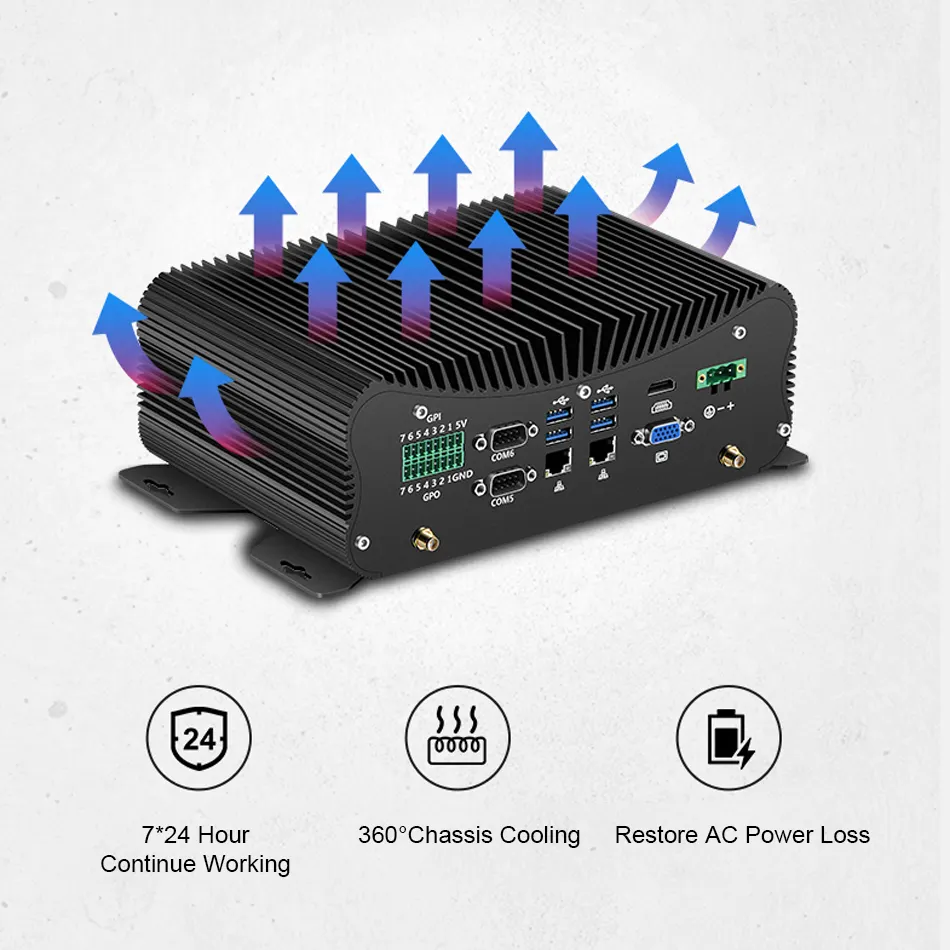

The fully enclosed aluminum alloy body can effectively prevent industrial dust from intruding into the machine to prevent hardware

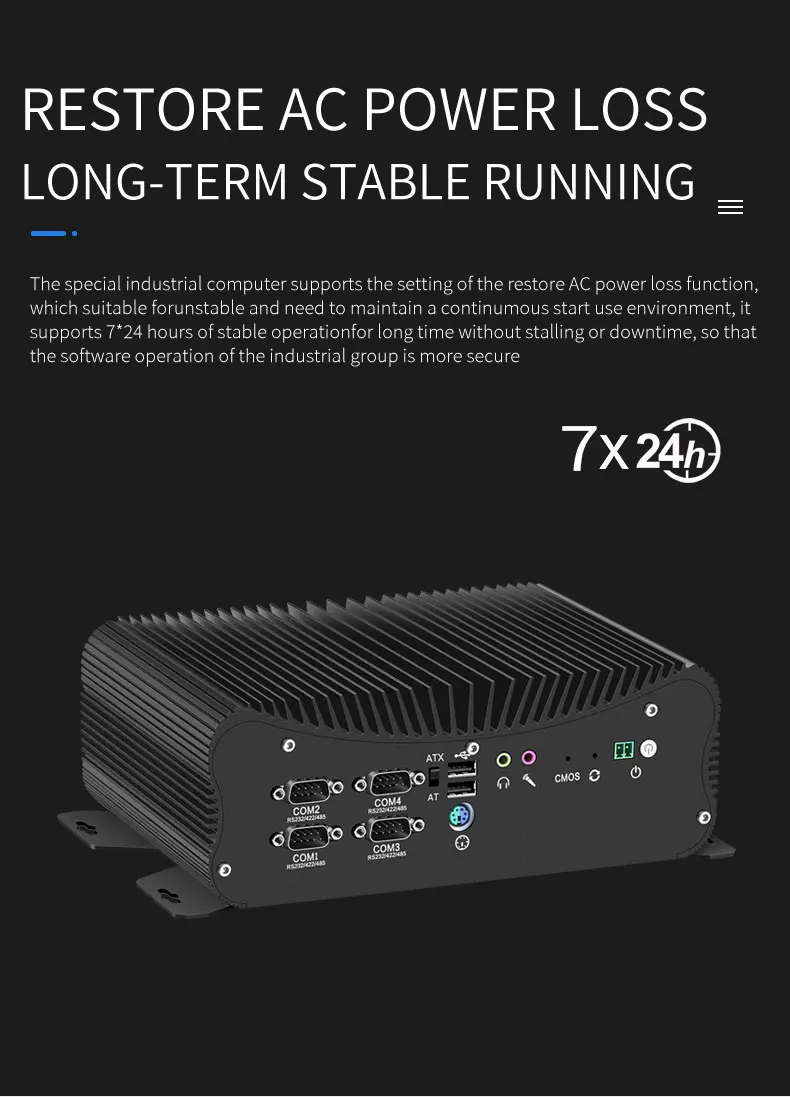

failures and prolong the life of the machine The special industrial computer supports the setting of the restore AC power loss
function, which suitable forunstable and need to maintain a continumous start use environment, it supports 7*24 hours of stable
operationfor long time without stalling or downtime, so that the software operation of the industrial group is more secure The

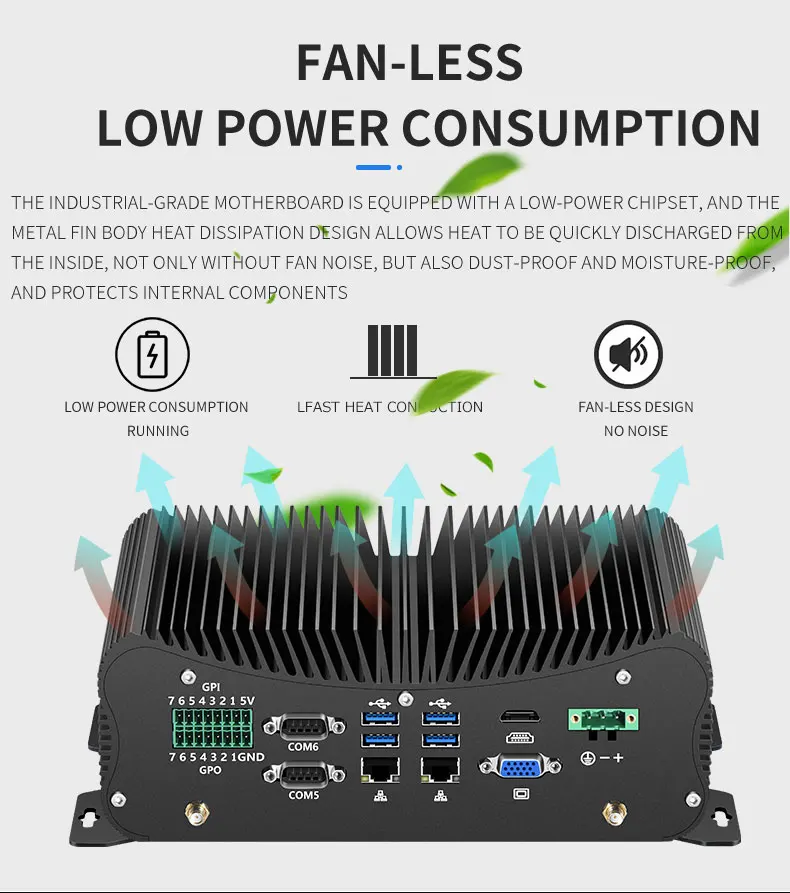

industrial-grade motherboard is equipped with a low-power chipset, and the metal fin body heat dissipation design allows heat to
be quickly discharged from the inside, not only without fan noise, but also dust-proof and moisture-proof, and protects internal

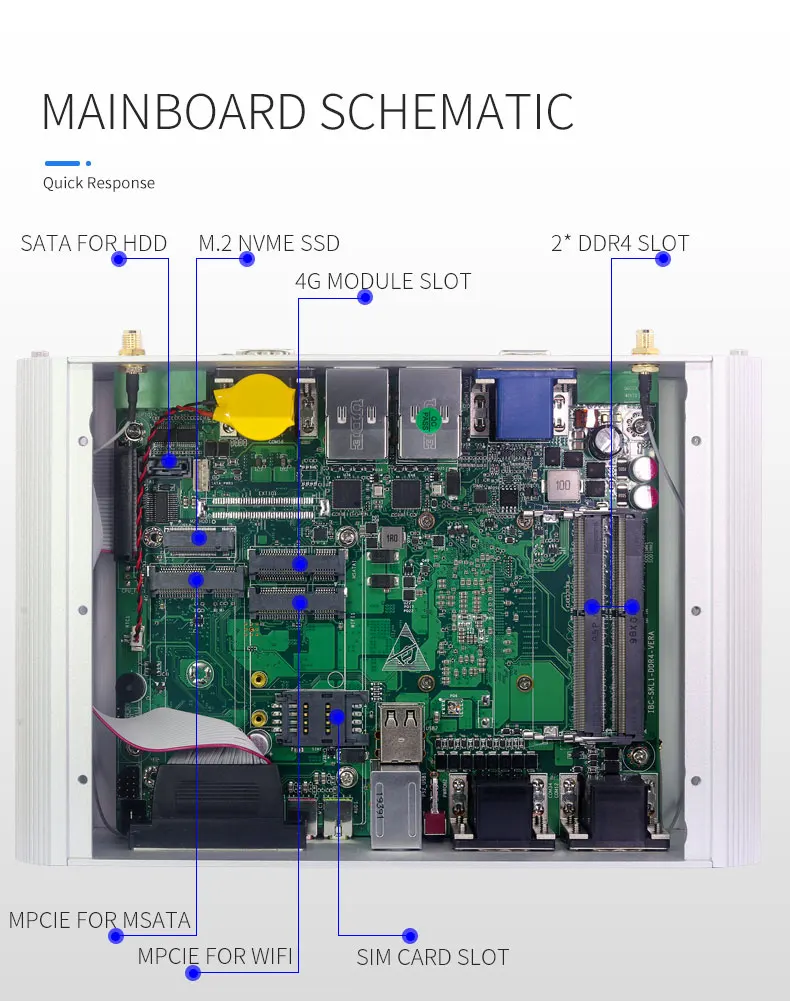

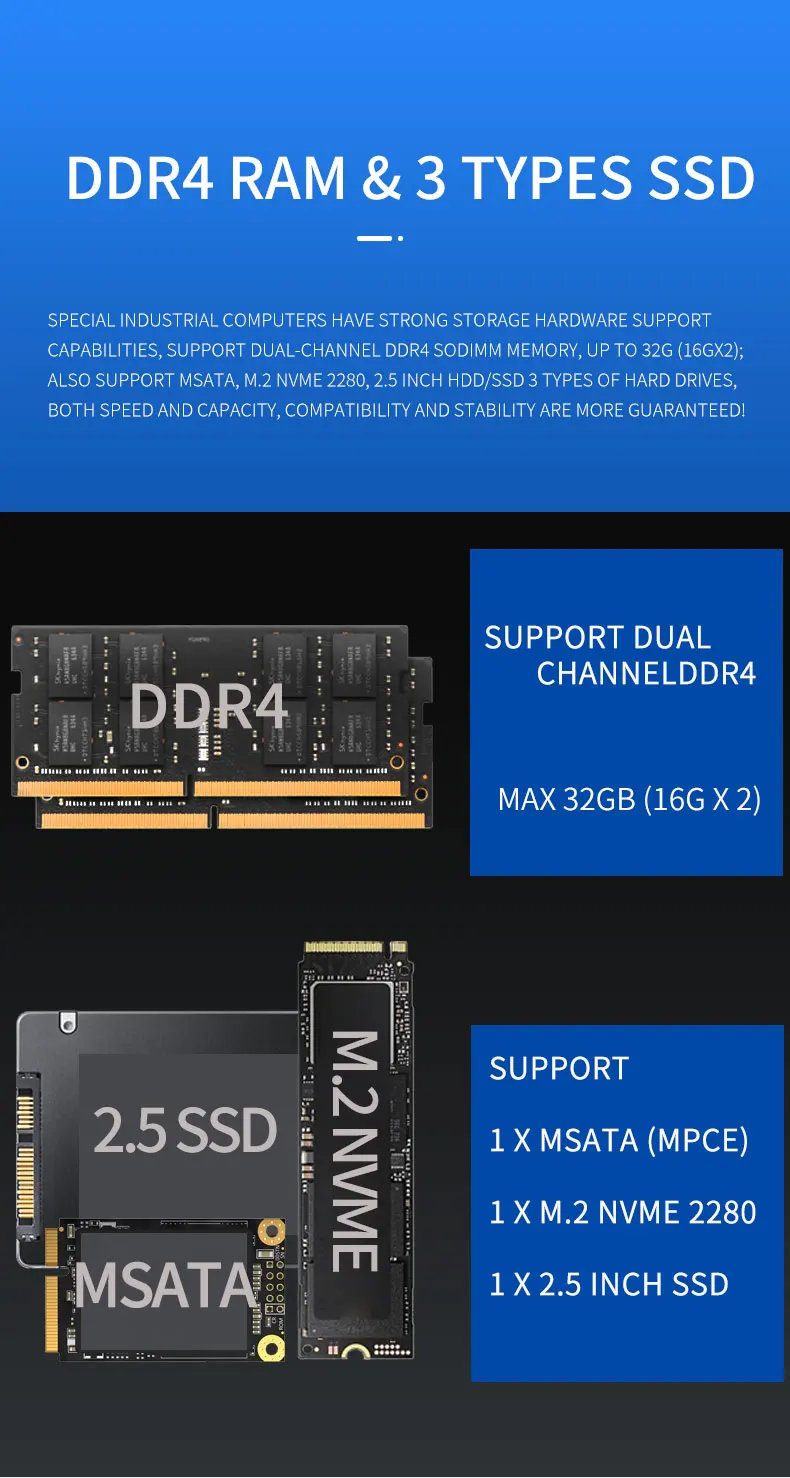

components Special industrial computers have strong storage hardware support capabilities, support dual-channel DDR4 SoDIMM
memory, up to 32G (16Gx2); also support mSATA, M.2 NVME 2280, 2.5 inch HDD/SSD 3 types of hard drives, both speed and capacity,
Compatibility and stability are more guaranteed!

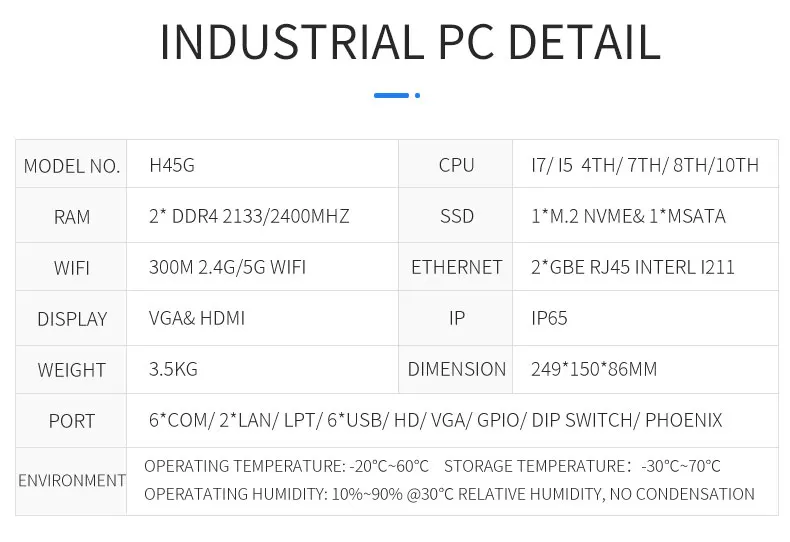

Specification

CPU	Intel Core i5-4200U, 3M Cache, 2 cores, 4 threads, 1.60GHz, max turbo 2.60GHz Intel Core i5-7360U, 4M Cache, 2 cores, 4 threads, 2.30 GHz, max turbo 3.60 GHz Intel Core i7-7560U, 4M Cache, 2 cores, 4 threads, 2.40 GHz, max turbo 3.80 GHz Intel Core i5-8365U, 6M Cache, 4 cores 8 threads, 1.60 GHz, max turbo 4.10 GHz Intel Core i7-8565U, 8M Cache, 2 cores, 8 threads, 1.80 GHz, max turbo 4.60 GHz Intel Core i5-10210U, 6M Cache, 4 cores, 8 threads, 1.20GHz, max turbo 4.20GHz Intel Core i7-10510U, 8M Cache, 4 cores, 8 threads, 1.80GHz, max turbo 4.90GHz Intel Core i7-10810U, 12M Cache, 6 Core, 12 thread, 1.1Ghz, up to 4.90 GHz
Lithography	14nm
TPD	25w
Graphics	Intel UHD Graphics for 10th Gen Intel Processors
4K Support	Yes, at 60Hz
Operating Systems	Windows 8.1 Windows 10 Windows 10 IoT Enterprise, LINUX Ubuntu
Max Memory Size (dependent on memory type)	2* Dual Channels SODIMM, Supports DDR4 2133/2400MHz 32GB
Memory Types	DDR4
Storage	HDD/SSD: 12.5Inch SATA SSD((Maximum data conversion rate SATA2.0)) SSD:1x M.2 NVME 2280 1mSATA
Wi-Fi	1* Half Height Mini PCIe, Support WIFI and Bluetooth
Blue tooth	4.2

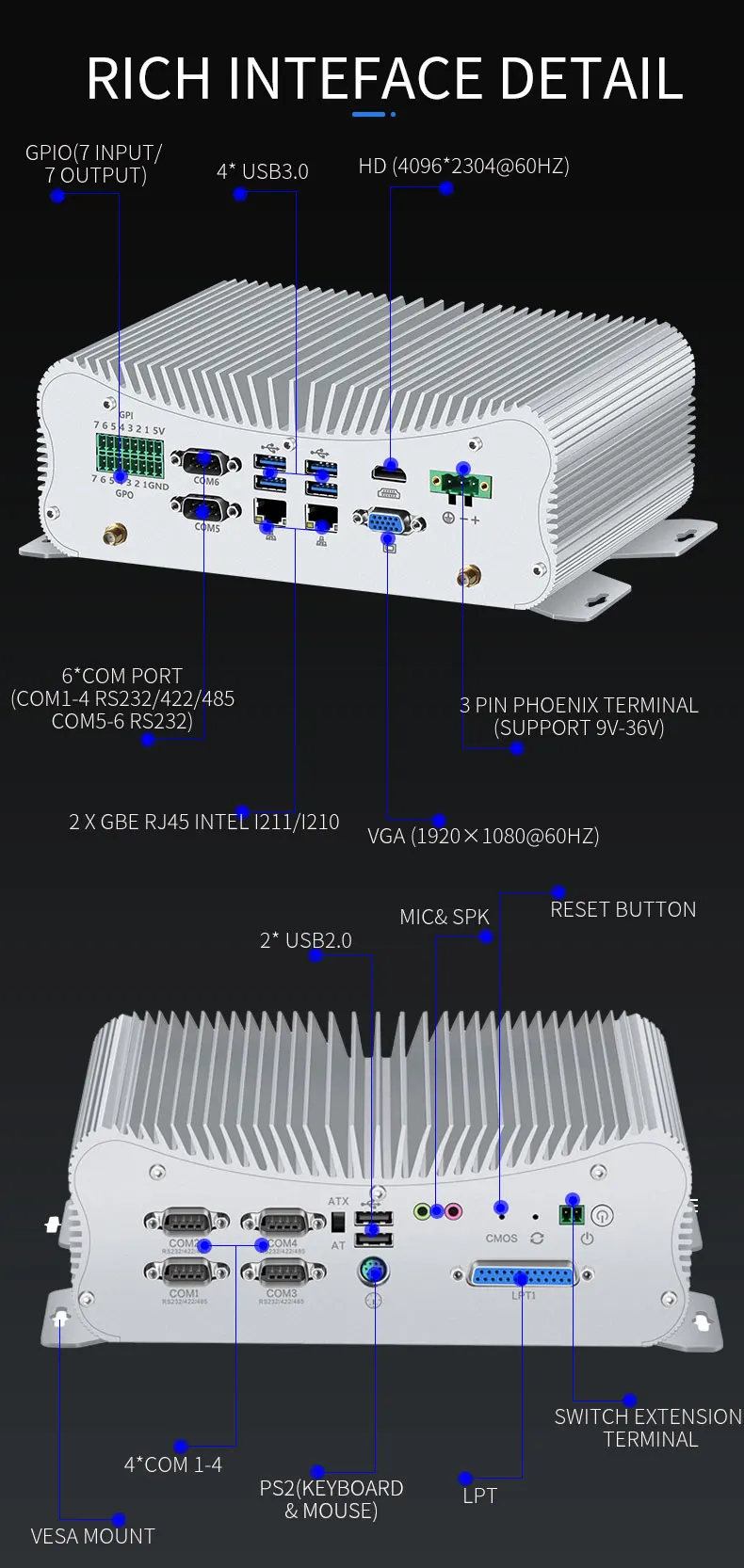

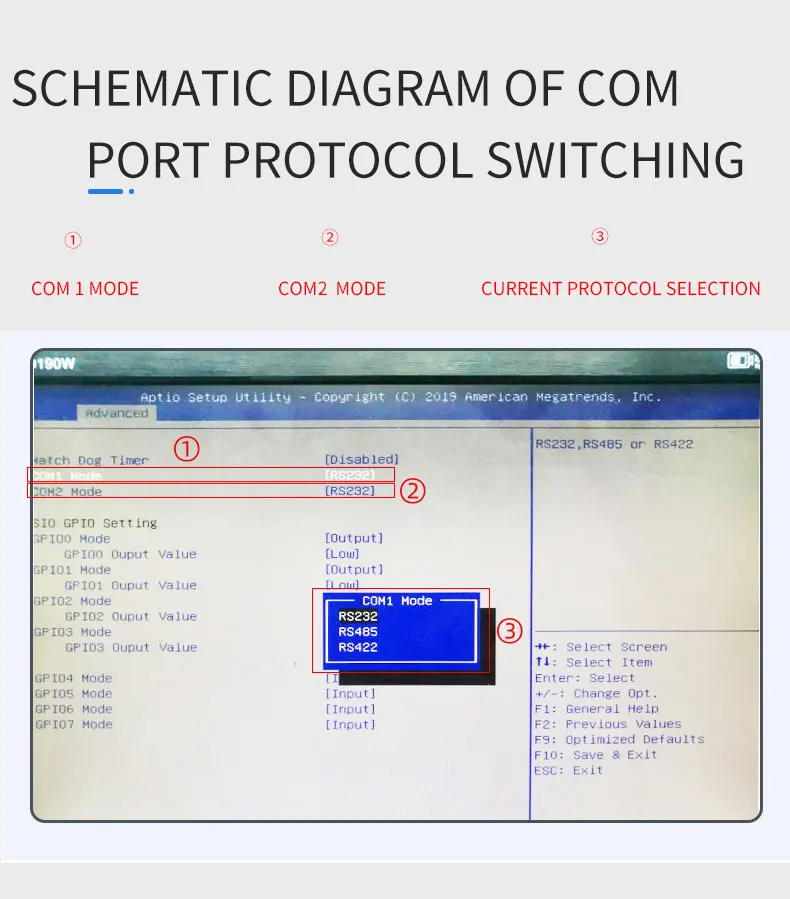

Interface	4 x USB3.0，2 x USB2.0 6 x Serial ports（COM1 COM2 COM3 COM4 support RS232/RS422/RS485; COM5 COM5 support RS232 ） 1 x VGA 1 x HDMI 2 x GbE RJ45 Intel i211/i210AT 1 x PS/2 ( support keybaord and mouse ) 14 x GPIO（7 input，7 output） 1 x Power Button, 1x 2-pin power switch connector, 1 x Reset Button，1 x Clear CMOS Button 1 x 3-pin power input connector, support voltage DC 9V to 36V input 1 x SPK 3.5mm,1 x MIC 3.5mm 1 x ATX/AT switch ( Switch to AT to open automatically power on after power loss ) 2 x WiFi antennas connectors, applied for WiFi/3G/4G modules
External antenna	WIFI Antenna
Expansibility	Mini-PCIe x 1 half height size，support WiFi / bluetooth module Mini-PCIe x 1 full height size, support 3G/4G module, WiFi bluetooth module support LPT (optional)
Other function	one-key restore, PXE, wake up on LAN, automatically power on after power restored
Power	AC100-240V IN, DC12V-5A Output
Voltage	9~36V

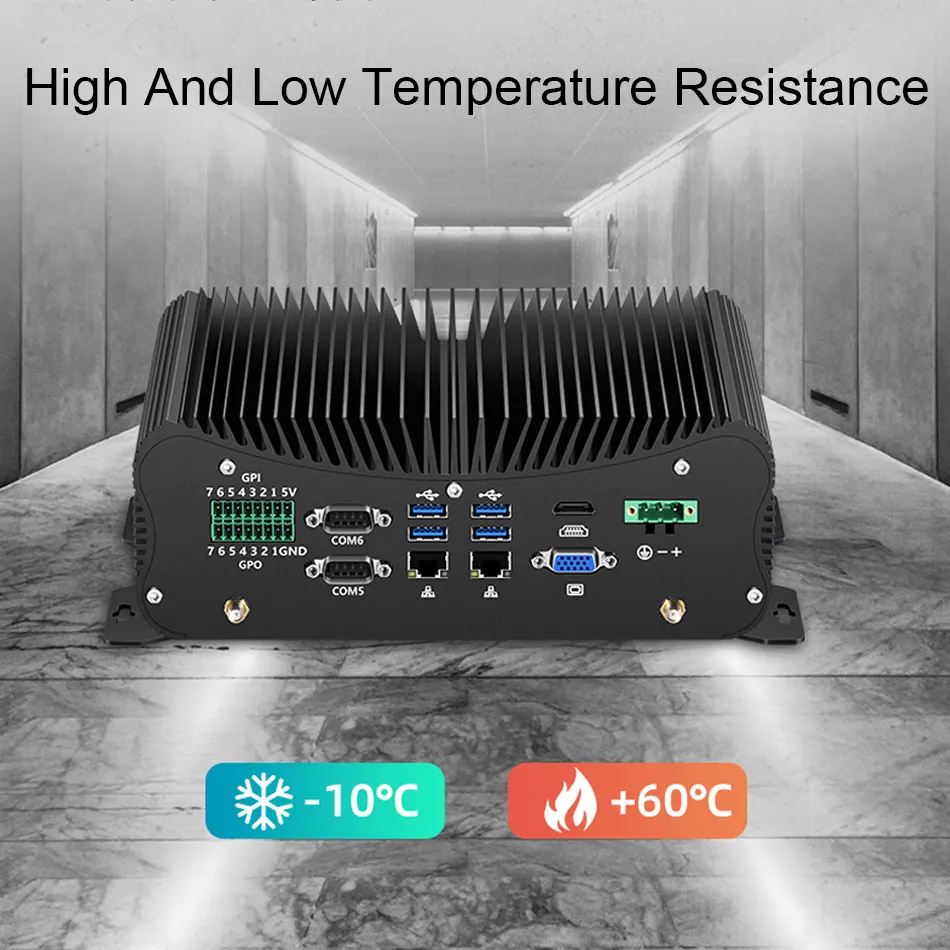

Temperature	Operating temperature -20℃~ 60℃ storage temperature -30℃~ 70℃
Humidity	10-90%（noncondensing）
Dimensions	249 x 150 x 86 mm
Weight（kg/lbs)	3.5KG
Warranty	3 Year Warranty on Parts and Labor against

Company Profile

Shenzhen Helor Cloud Computer Co,. ltd(HLY) ,located in Shenzhen, Guangdong and specialized in mini computer since 2013, has our own professional motherboard manufacturer.Developed more than 50 kinds of own products, applied in different fields for AI, office working, education, entertainment, advertising, transport, military, industrial, etc....Our mini pc had sold in more than 60 countries and regions, annual sales exceed one million units. HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control, thereby HLY can offer the leading edge device, the latest technological developments as well as best prices to our clients.

We have more than 100 employees. Experienced technical group , reliable and dedicated sales department and responsible production team constitute the backbone of our enterprise.Our well-selected components and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Our engineers are outstanding in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.So ODM\OEM is highly welcome.From design, production and installation to excellent after-sales, HLY clients are assured of the highest level of quality and service.

Packaging&Shipping

① Power adapter:

We have multiple specifications of power supplies, which are selected by default based on your shipping address.If you have special demands, please contact us in time.
EU,UK,US,AU,Brazil,etc.

② Payment:

We are supporting L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

③ Packaging：

We carefully wrapped the mini pc and the parts with a waterproof bag,then fix it in the inner carton box with a foam board.Put the inner box into the outer box, and then seal the outer box with tape .

④ Shipping Methods:

Shipping by DHL, FedEx, UPS, Aramex, post and Alibaba, and negotiation. ( choose as you prefer)

FAQ

1,How about the waranty?
A:The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.

2,Can i print my logo on your mini pc?
A:Yes,please provide your logo file, and we will confirm the design effect to you before production.we also doing OEM\ODM.

3,What is the MOQ?
A:We can sell one sample for your test.

4,How long the package will ready after I buy the mini pc?
A: It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. More information please kindly check with us.

5,Are your mini pc in stock?
A:Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
