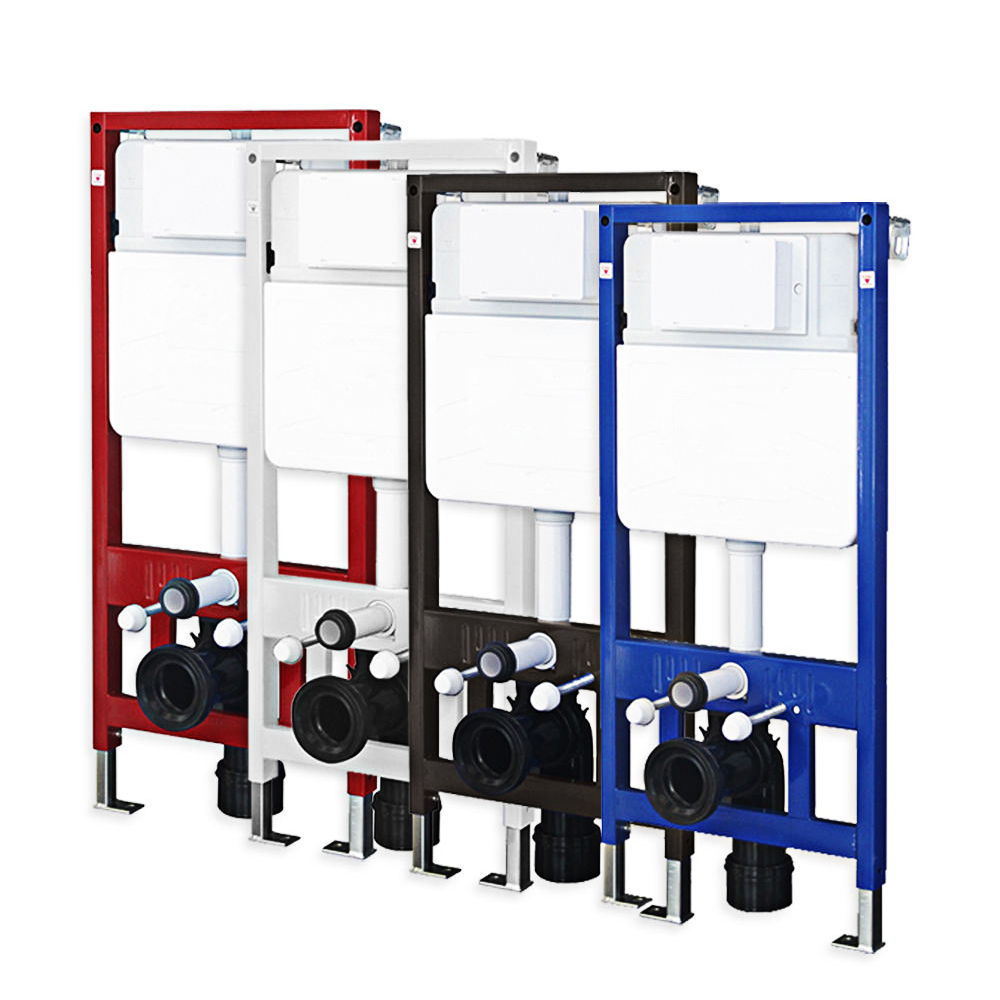

Simplify Your Renovation Easy-to-install Concealed Flush Tank For Panel Support

Top Selling Products

G2000 Women Belted Dress

$53.90
David Jones Paris sling bag for women leather crossbody bag messenger bags ladies shoulder bag woman handbag 2022

$59.90
FILA x Maison MIHARA YASUHIRO Women's Logo Plaid Patchwork Dress

$203.00
Online Exclusive Women's Embroidered F Logo Hooded Dress

$200.00
Gaming Headphone 7.1 Sound Over-ear Vibration Headset Earphones USB with Microphone Computer Original Brand Somic G941

$52.24
Hyper X Cloud Core 7.1 Surround Sound Gaming Headset Noise Cancelling Wired Gaming Headphone

$60.00

Description reviews

Product Description

Product Parameters

Product Name	Concealed Toilet Cisterns	Modern	Style
Brand	OEM/ODM	Color	white tank, blue frame
Tank Material	One-piece HDPE cups	Product Origin	Guangdong, China
Quality	5 years warranty	Packing	Carton Packing
Size	500×120×1130 mm	After-sales service	Spare parts/video
FCL	20GP:320PCS/40HQ:750PCS	HS code	39229000

Recommend Products

serial number	designation	serial number	designation
A	installation frame	G	flushing straight pipe
B	angle valve	H	screw
C	cover of quadrilateral frame	I	sewage straight pipe
D	panel	J	rubber ring forsewage straight pipe
E	tank	K	sewage elbolw pipe
F	flushing pipe	L	installation frame expansion feet

Structural details

Copper Angle Valve

All copper inlet valve port, size R 1/2, which is a "quarter
port" that is not easy to rust, solid and durable

Durable 100000 times

Built in high-quality water tank, has passed laboratory

testing with a lifespan of 100000 times

Drain valve

Exclusive drainage valve structure design, with

a lightweight and soft feel,The drainage speed
has been increased by 25% and the water volume
is stable,Later disassembly or cleaning makes
maintenance more convenient.

inlet valve

Anti-siphon design,anti-reverse flow, to ensure

the safety of water quality.Single floating bucke
design,more convenient to adjust the water volume;
adapt to a wide range of water prossure,and

long service life. High and low pressure inlet water

flow is stable, low noisel

COPPER ANGLE VALVE ALL COPPER INLET VALVE PORT,SIZE R 1/2 WHICH IS A“QUARTER PORT" THATIS NOT EASY TO RUST,SOLID AND DURABLE

TWO SETS OF MOUNTING HOLES 18/23CM,SUITABLE FORA WIDE RANGE OF TOILETS SUITABLE FOR USE WITH 180MM OR 230MM PITCH TOILET BOWLSALSO GUARANTEES 400KG AT MAXIMUM SUPPORT WEIGHT

HEIGHT-ADJUSTABLE IRON FRAME

NOT ONLY THE HEIGHT CAN BE FLEXIBLY ADJUSTED,STRONG SUPPORT MOREEMPHASIS ON CORROSION AND OXIDATION RESISTANCEADJUSTABLE RANGEOF 0-200MM

HDPE HIGH-STRENGTH WATER TANK GOOD WEAR RESISTANCEELECTRICAL INSULATIONTOUGHNESS AND COLDRESISTENCESTABLE CHEMICAL COMPOSITIONSTRONG,DURABLENOT EASYTO AGE

BEST SELLING PRODUCTDROP SHIPPING SERVICE

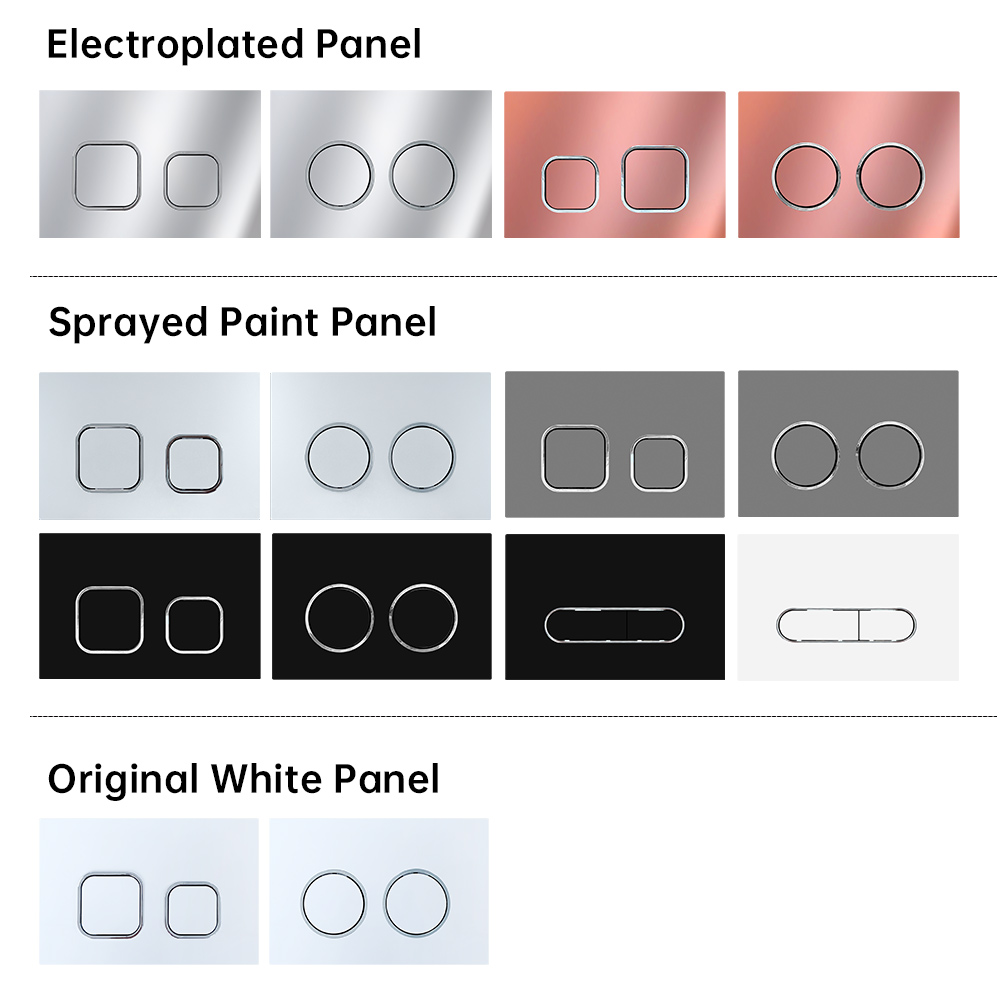

Electroplated Panel

Stainless steel panel

Sprayed Paint Panel

Original White Panel

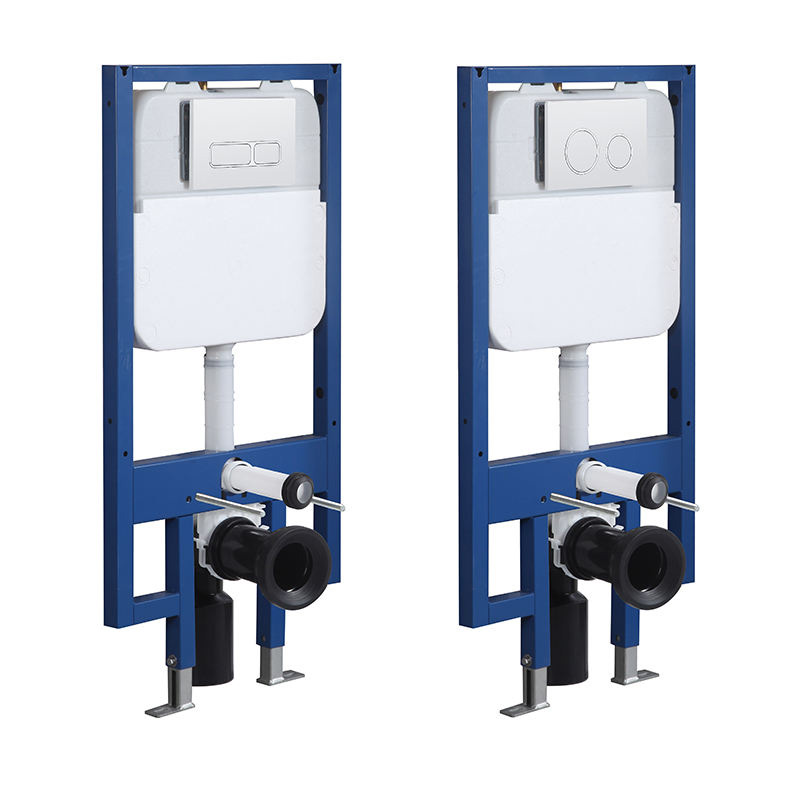

Frame

Installation Instructions

* SINGLE AND HALF WALLS FALSE HALF WALLS,SINGLE WALLS,AND FALSE WALL INSTALLATIONS CANBE MADE ACCORDING TO DESIGN REQUIREMENTS *THE CONCEALED WATER TANK SHALL BE INSTALLED ON THE LOAD-BEARING WALL OR SOLID WALL.IFTHE WALL SURFACE S CONCRETE MASONRY UNIT.THE WALL BRICKS AT THE FIXED AND PERFORATEDPOSITIONS SHALL BE REPLACED WITH SOLID BRICKS

ABOUT US

FAQ

1. No water Perhaps the corner valve is not open, screw the corner valve 2 .Water level is too low or too high Adjust the height of the float bucket and the float 3 .More than water The inlet valve has many impurities at the water seal, clean the sealing ring and active valve core 4. The water inlet speed is slow With insufficient water pressure or blocked impurities, clean the filter net and adjust the water pressure 5 .Do not rush water The trachea is folded to keep the trachea smooth, the water level is too low, and adjust the working water level
