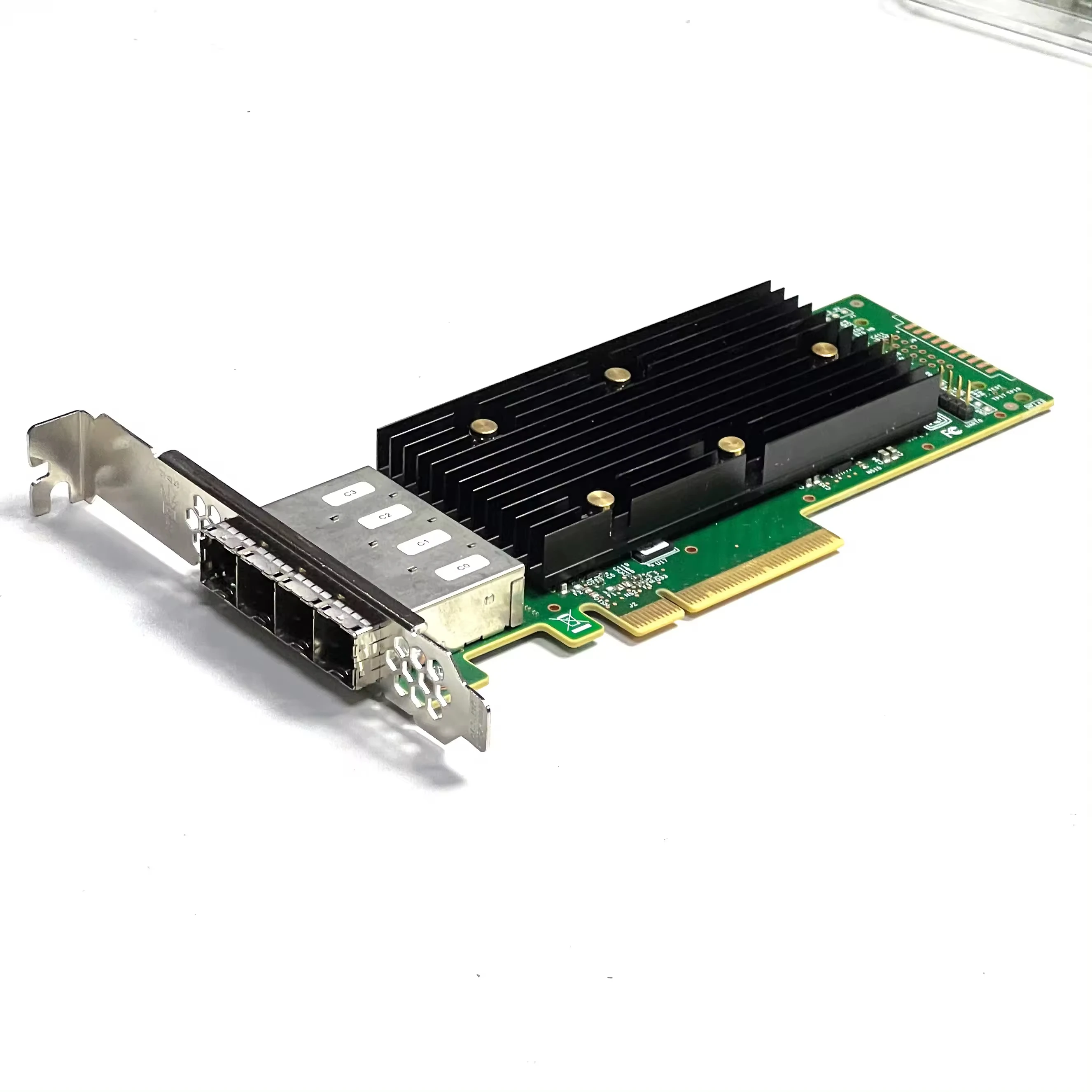

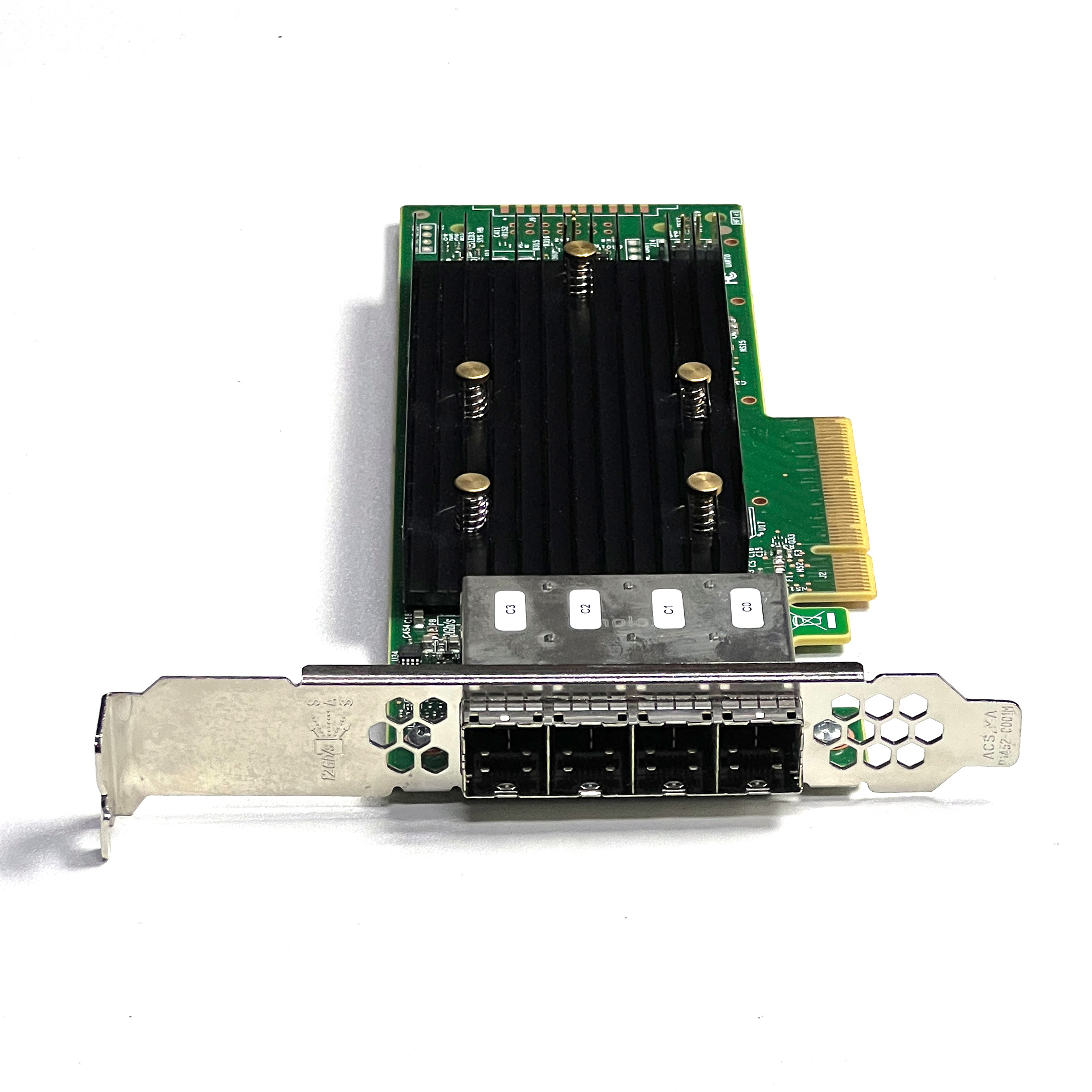

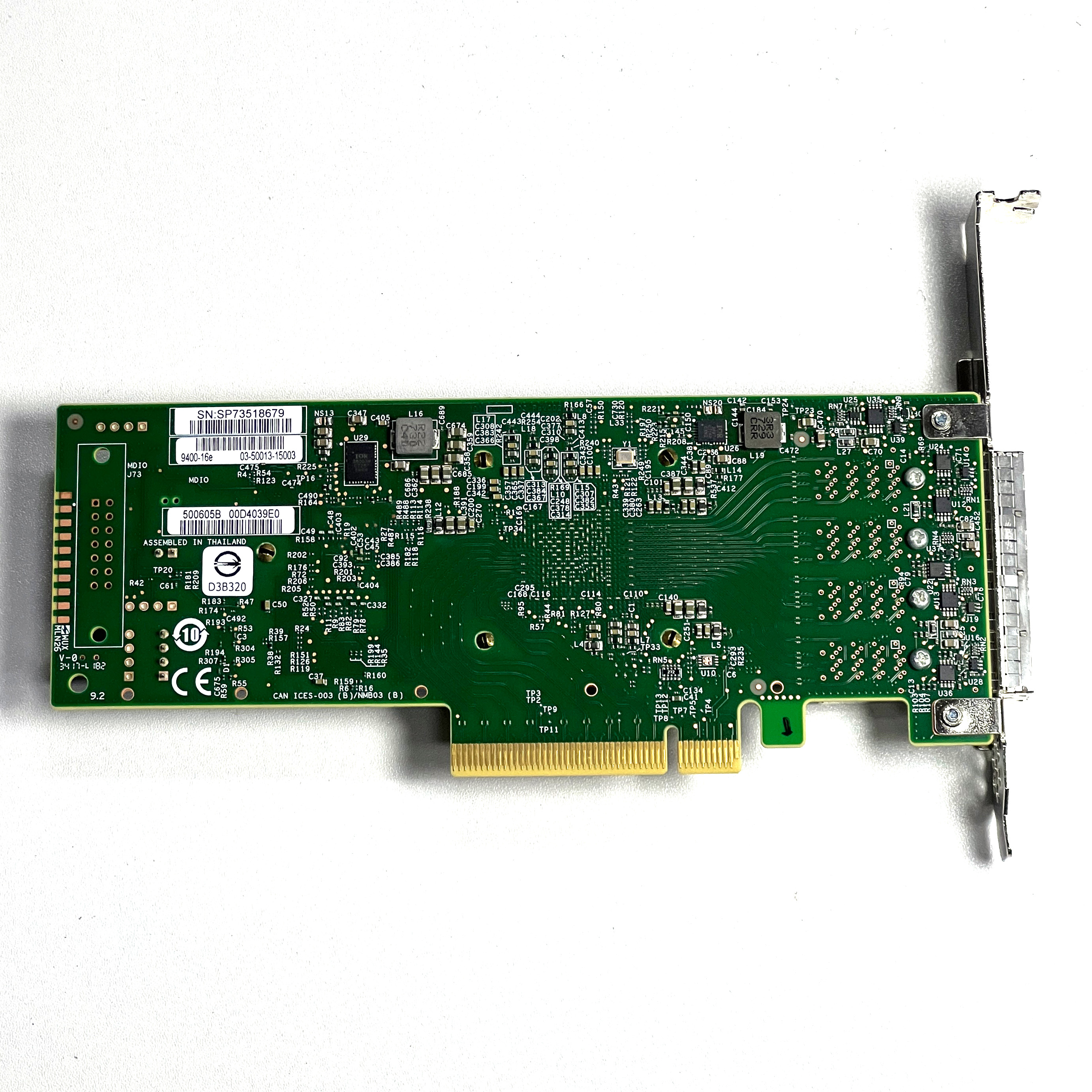

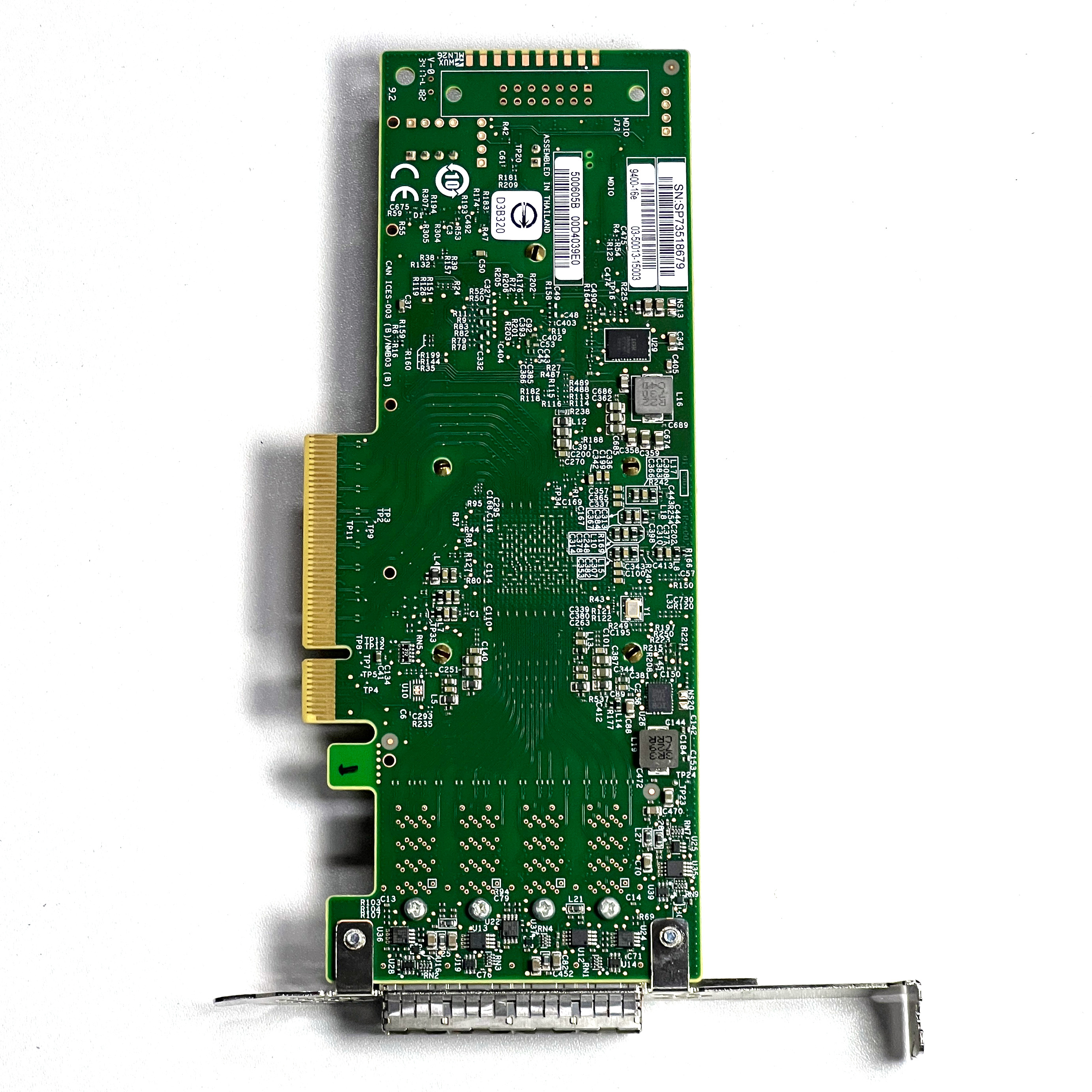

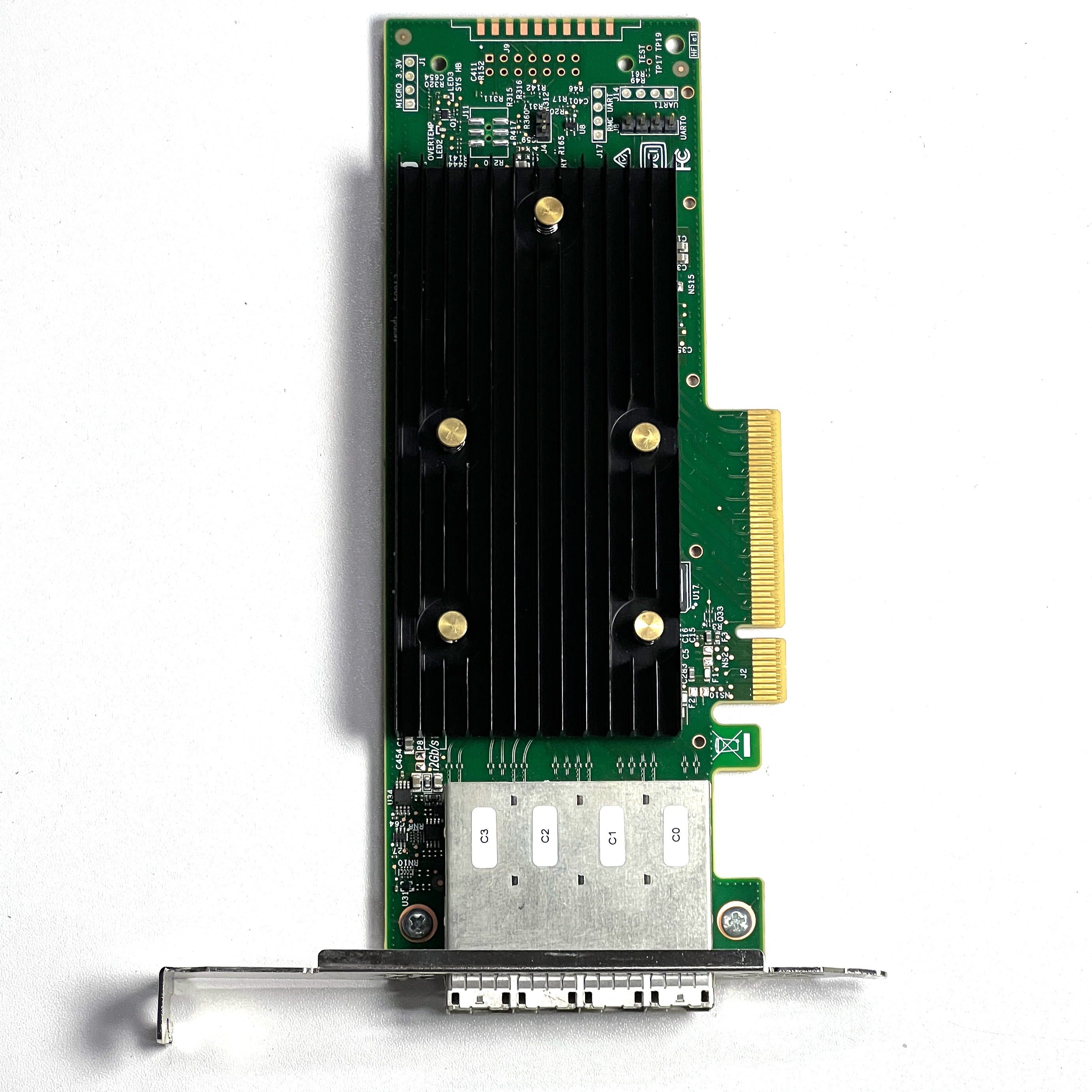

12gb/s X8 Lane 9400-16e Computer Adapter Card 3.1 Sas/sata/nvme Tri-mode Pcie Hba For Server In Stock
(0
reviews)
Estimate Shipping Time:
3 Days
Sold by:
Inhouse product
Inhouse product
Price:
$380.00
/Pc
Refund:
Share:
Top Selling Products
-
G2000 Women Belted Dress
$53.90
Applications
• High-port count SAS/SATA/NVMe
adapters for direct attached high
connectivity applications
• Tri-Mode connectivity enabling
maximum data center flexibility
• Flexible solutions for cloud
computing
• External storage requiring high
connectivity SAS/SATA interface
for host or drive side connect
Key Features
• Tri-Mode Storage Interface Ports
− SFF-8680 Bay
− x1 SAS
− x1 SATA
− x2 SAS (Multi Link)
− Two x1 SAS (Dual port using
MPIO)
− SFF-8639 (U.2) Bay
− x2, x4 NVMe
• Supports 12, 6, and 3Gb/s SAS and
6, 3Gb/s SATA data transfer rates
• Up to 8 storage interface PCIe links.
Each link supporting x4 or x2 link
widths up to 8.0 GT/s (PCIe 3.0) per
lane
• SFF-9402 Compliant, Connector
Pin-out
Industry’s First HBA with Tri-Mode SerDes Technology
Broadcom enables high performance storage connectivity and flexible
system designs that support any combination of NVMe, SAS and SATA
devices with the industry’s first HBA with Tri-Mode SerDes. The Tri-Mode
HBAs expand Broadcom’s industry leading family of 12Gb/s SAS HBAs with
8 and 16 port internal, external and combination Tri-Mode port options.
NVMe Performance Gains for Storage
The Tri-Mode Storage HBAs bring NVMe performance benefits to the
storage tier by providing connectivity and data protection that HBAs have
offered for over 20 years for SAS/SATA interfaces. Based on the singlecore SAS3516, SAS3416, or SAS3408 Tri-Mode Storage I/O controllers
(IOC), these HBAs provide bandwidth and IOPS performance increase
compared to the previous generation and are ideal for high-end servers
utilizing internal storage or connecting to large-scale external storage
enclosures.
Endless Design Flexibility Using Tri-Mode Controllers
Broadcom Tri-Mode SerDes Technology enables the operation of NVMe,
SAS, or SATA storage devices in a single drive bay. A single controller
can operate in all three modes concurrently servicing NVMe, SAS, or
SATA drives. The controller negotiates between the speeds and protocols
to seamlessly work with any of the three types of storage devices. TriMode support provides a non-disruptive way to evolve existing data
center infrastructure. By upgrading to a Tri-Mode HBA, users can expand
beyond SAS/SATA and use NVMe without major changes to other system
configurations.
9400-16e | 9400-8e | ||
Ports | Four (x4) SFF-8644 | Two (x4) SFF-8644 | |
Storage Interface Support | SAS, SATA, NVMe (PCIe) | SAS, SATA, NVMe (PCIe) | |
Max NVMe Direct Attach Devices | N/A | N/A | |
Max Devices Per Controller | SAS/SATA: 1024 | SAS/SATA: 1024 | |
I/O Processor/SAS Controller | SAS3416 | SAS3408 | |
Host Bus Type | PCIe 3.1 x8 | PCIe 3.1 x8 | |
Typical Power | 11.18W | 9.48W | |
Physical Dimensions | 6.600 in. x 2.712 in. (167.65 mm x 68.90 mm) | 6.600 in. x 2.712 in. (167.65 mm x 68.90 mm) | |
Cable Support | Passive Copper, Active Copper, Active Optical | Passive Copper, Active Copper, Active Optical | |
Operating Conditions | Operating: 0°C to 55°C, 20 to 80% non-condensing, Airflow: 200 LFM, Storage: −45°C to +105°C, 5 to 95% non-condensing | ||
MTBF (Calculated) | >4,500,000 hours at 40°C | ||
Operating Voltage | +12V ±8%; 3.3V ±9% | ||
1. who are we?
We are headquartered in Guangdong, China and have been selling to the domestic market (60.00%), Western Europe (10.00%), North America (10.00%), South America (10.00%), Africa (2.00%), East Asia (3%), Middle East (2%), South Asia (1.50%), and Southeast Asia (1.50%) since 2016. We have a total of about 10-20 people in our office.
2. How do we ensure the quality?
We do pre-production samples before mass production;
Final inspection must be done before shipment;
3. What can you buy from us?
Fiber optic NICs, server NICs, RJ45 optical NICs, OCP optical NICs, Ethernet cards, HBA cards, Raid controller cards.
4. Why buy from us instead of other suppliers?
We have 3 warehouses in China: Shenzhen, Guangzhou and Beijing. With over 8 years of experience, we are committed to providing the highest level of customer service and fastest shipping.
5. What services do we offer?
Accepted delivery terms: FOB, CIF, export price;
Accepted payment currencies: USD, CNY USD, CNY;
Accepted payment methods: T/T, Credit Card, PayPal, Western Union, Cash, Escrow;
Languages English, Chinese
