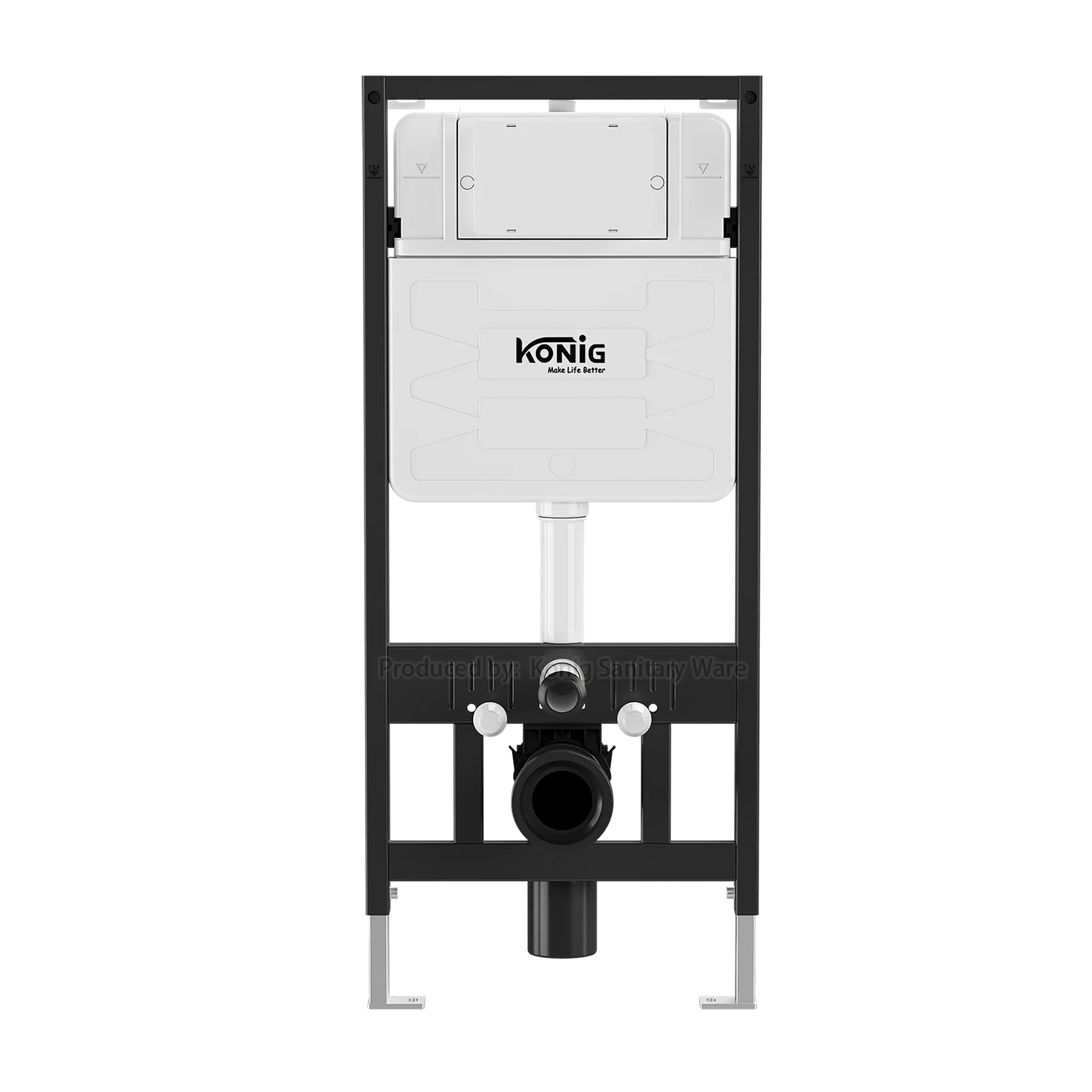

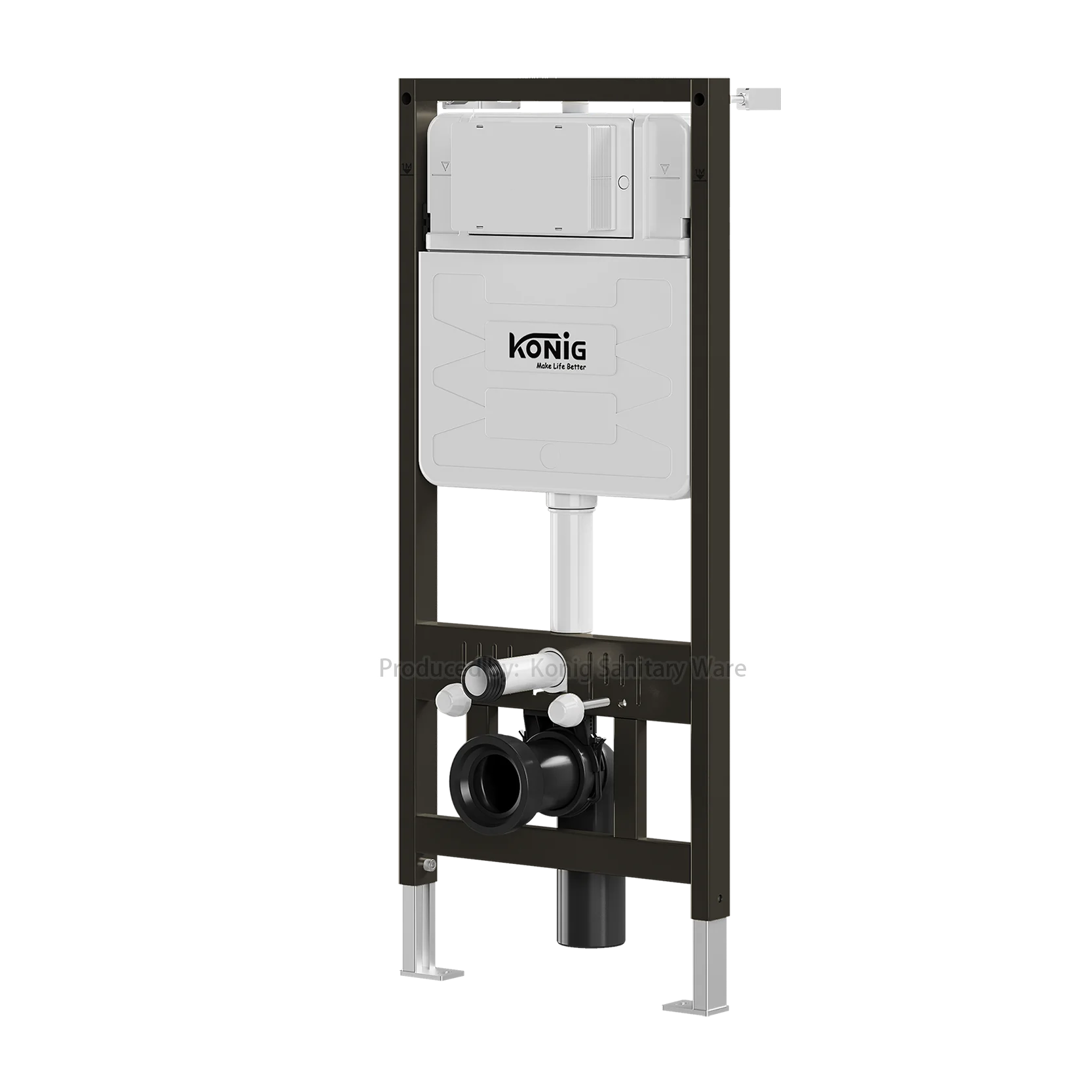

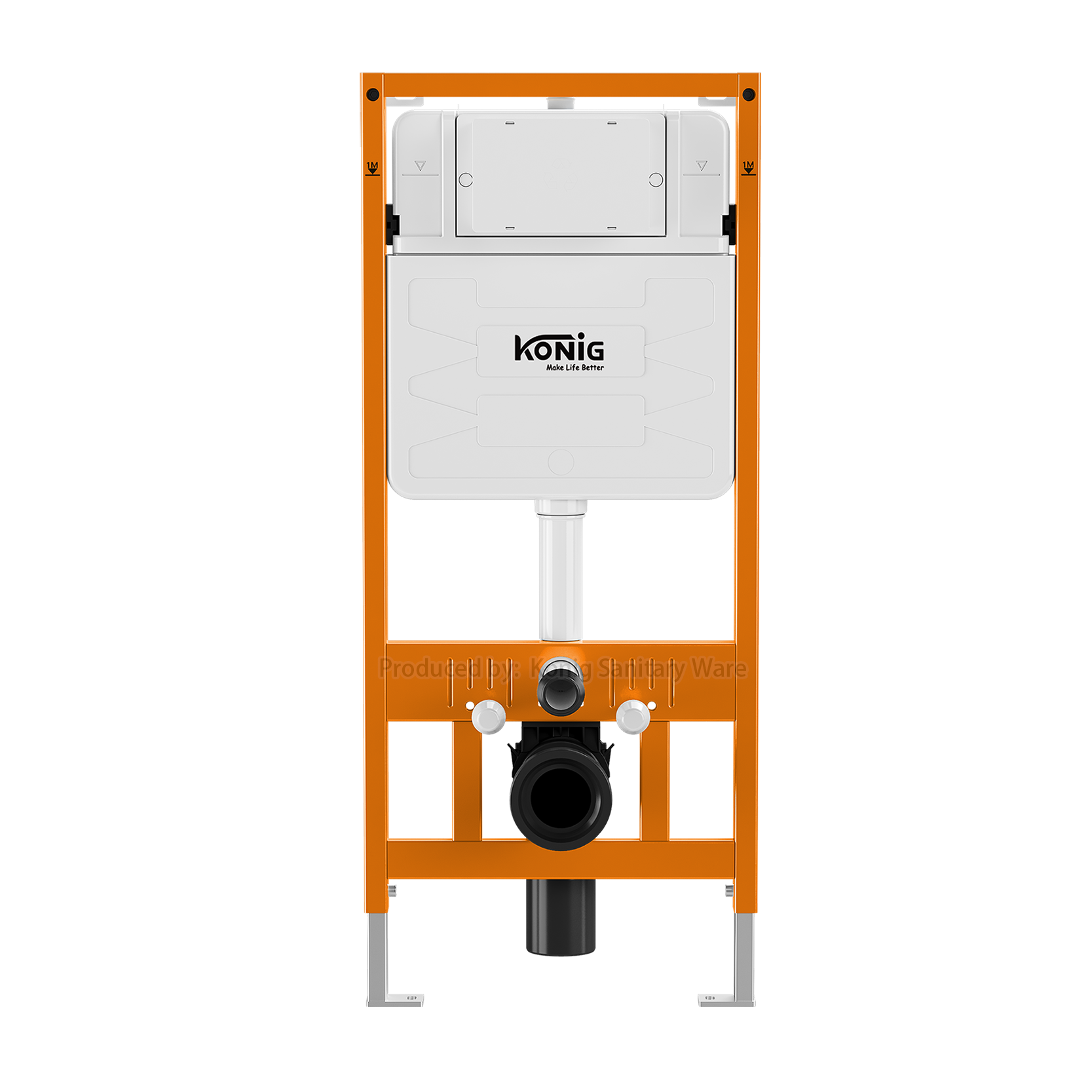

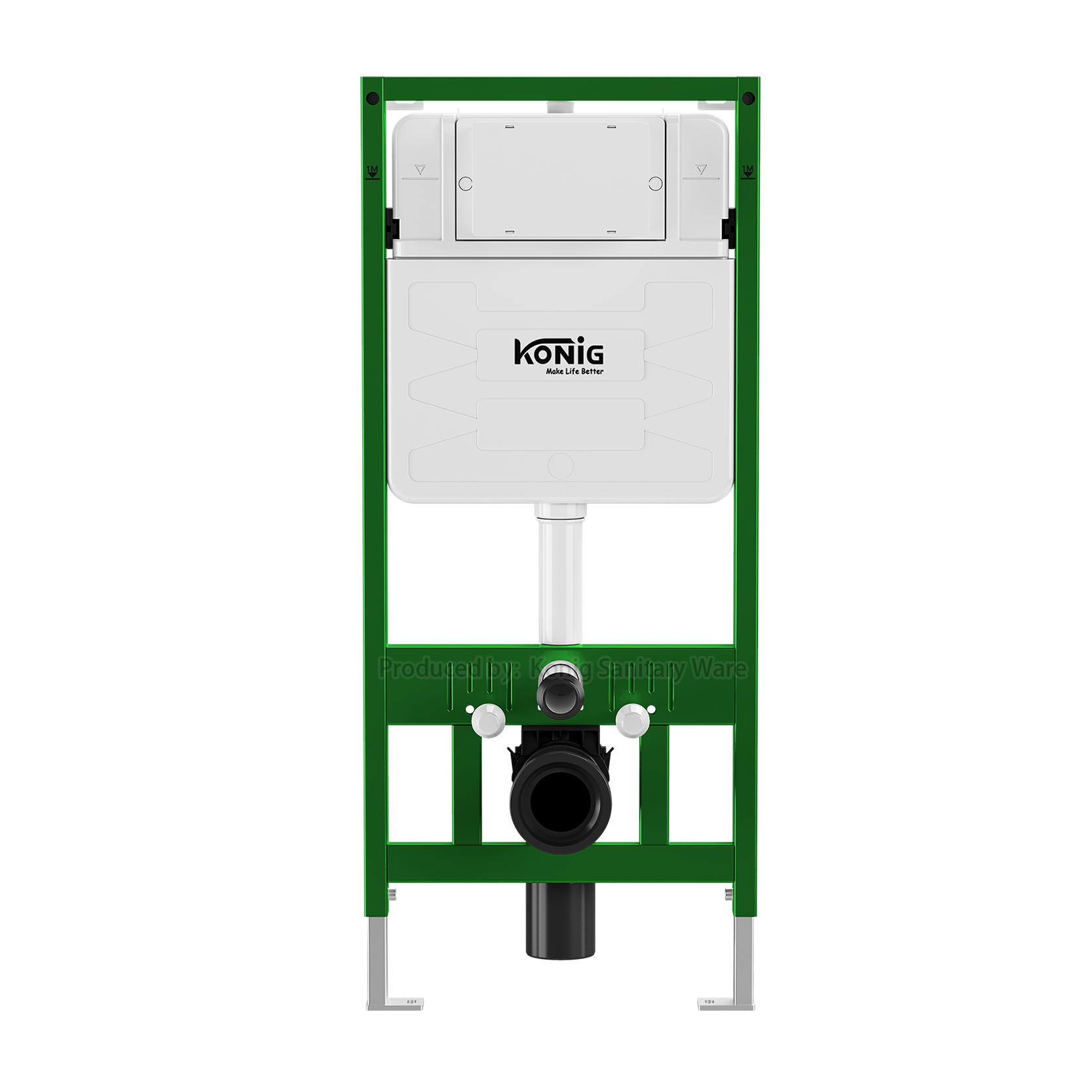

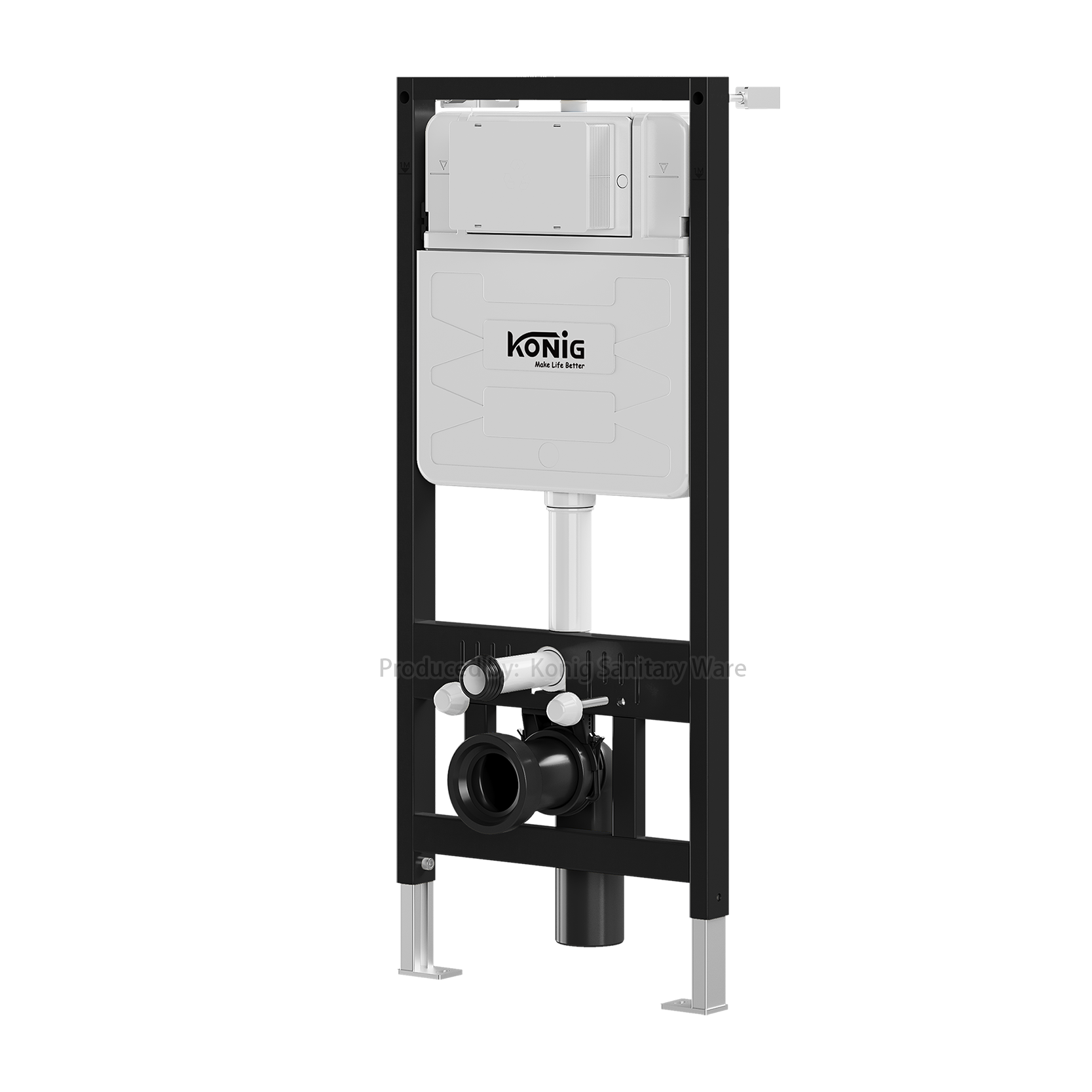

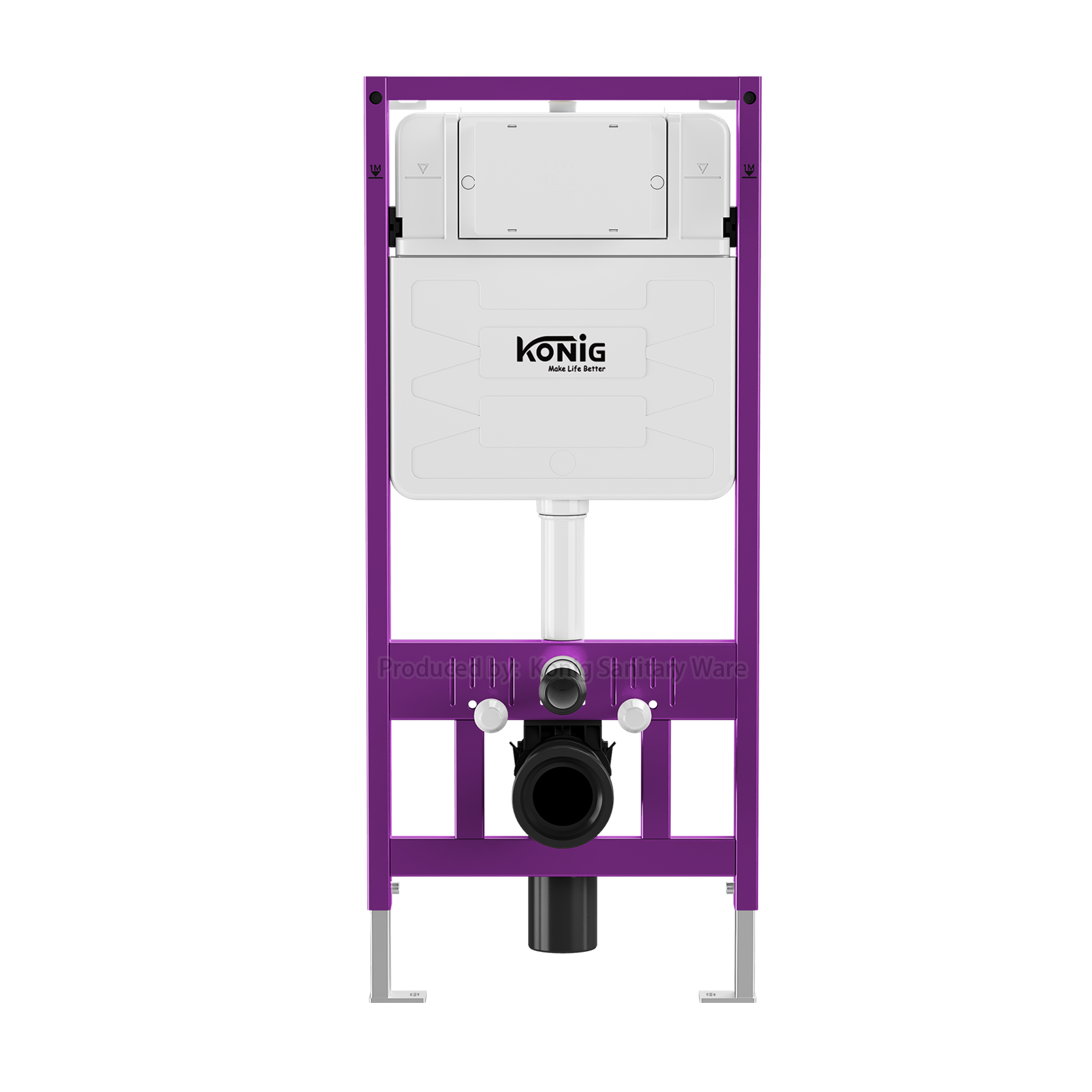

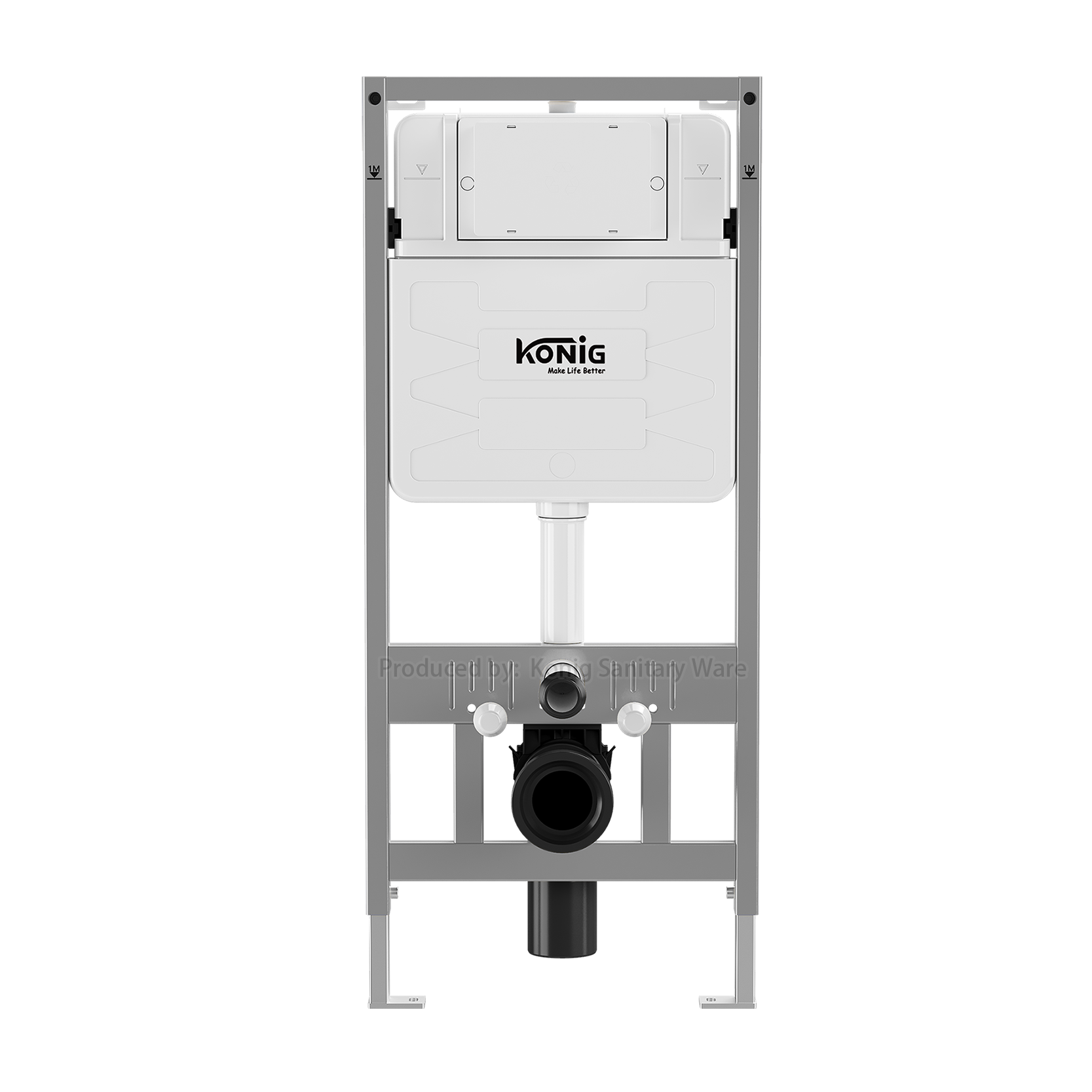

Model | 601A |
Installation | -In split-height prewall contruction in front of a solid or drywall contruction, -Floor construction 80-200mm, -Wall-hung WC with fastening distance 180mm or 230mm. |
Control Panel | -Mechanical Panel, -Front flush. |
Flush Volume | 4/6L.and can be adjusted to 3/4.5L |
Flush Type | Dual Flush |
Housing Material | HDPE |
Water Supply | Top |
Drainage Pipe Adjustable | up and down:90mm-115mm, front and back:130-176mm |
Galvanized Arm Adjustable | 140-190mm |
Galvanized Leg Adjustable | 0-220mm |
Self-supporting frame | Height 1120mm, Powder-coated |
