Fanless Mini Pc I5 7267u 8250u Ddr4 M.2 Nvme 3g 4g Lte Linux Desktop 2 Nic Gpio Rs232 Sim Card Lpt Industrial Computer

Top Selling Products

G2000 Women Belted Dress

$53.90
David Jones Paris sling bag for women leather crossbody bag messenger bags ladies shoulder bag woman handbag 2022

$59.90
FILA x Maison MIHARA YASUHIRO Women's Logo Plaid Patchwork Dress

$203.00
Online Exclusive Women's Embroidered F Logo Hooded Dress

$200.00
Gaming Headphone 7.1 Sound Over-ear Vibration Headset Earphones USB with Microphone Computer Original Brand Somic G941

$52.24
Hyper X Cloud Core 7.1 Surround Sound Gaming Headset Noise Cancelling Wired Gaming Headphone

$60.00

Description reviews

Aluminum Alloy Sturdy Chassis

Special chassis design of fanless super heat dissipation, with i5 7267U/i5 8250U, extremely rich slot&port design. low power consumption; fully enclosed dustproof; corrosion resistance; high and low temperature resistance; full loading 7*24H working; can be used normally in harsh industrial environment.

Also have wide range of applications.

General Purpose Input Output

14*GPIO,7 input,7 output.

Micro 3mm x 3mm QFN package.

Input compatible with 5V voltage.

2*LAN

2 x GbE RJ45 In-tel i211/i210

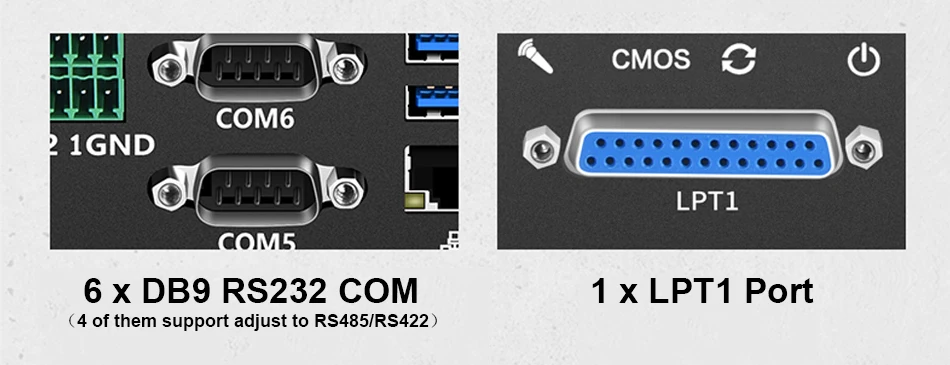

6*DB9 COM

2*RS232+4*RS232/422/485

Widely used in industrial instrument CNC machine tools, self-service terminal equipment, medical equipment, etc.

LPT

Usually used for scanners, printers

ATX / AT DIP Switch

ATX / AT power on mode selection

3 pins Phoenix

Support 9~36V power input

Specification

Processor	In-tel C-ore i5-7267U Processor,4M Cache, up to 3.50 GHz,2 Cores 2 Threads,TDP:28W In-tel C-ore i7-7600U Processor,4M Cache, up to 3.90 GHz,2 Cores 4 Threads,TDP:15W In-tel C-ore i5-8250U Processor,6M Cache, up to 3.40 GHz,4 Cores 8 Threads,TDP:15W In-tel C-ore i5-8265U Processor,6M Cache, up to 3.90 GHz,4 Cores 8 Threads,TDP:15W In-tel C-ore i5-8269U Processor,6M Cache, up to 4.20 GHz,4 Cores 8 Threads,TDP:28W In-tel C-ore i7-8550U Processor,8M Cache, up to 4.00 GHz,4 Cores 8 Threads,TDP:15W In-tel C-ore i5-10210U Processor,6M Cache, up to 4.20 GHz,4 Cores 8 Threads,TDP:15W In-tel C-ore i7-10510U Processor,8M Cache, up to 4.90 GHz,4 Cores 8 Threads,TDP:15W
Display	GPU: i5-8250U:In-tel UHD Graphics 620 \| i5-7267U:In-tel Iris Plus Graphics 650 Dual display:VGA + HD,Support for Synchronous or Asynchronous Display
Memory	2GB/4GB/8GB/16G DDR4 2133/2400MHz 1.35V 2*260 pins SO-DIMM slot Maximum capacity:32G
Hard Disk	SSD:1* M.2 NVMe 2280 SSD+1* full height mSATA SSD, 16GB/30GB/60GB/120GB/240GB/500GB/ 1TB for optional. HDD:1* 2.5" SSD/HDD Connect by SATA power and data cable.
Support OS	Official Win7/Win8/Win10 \| WES7/10 \| LINUX Notice: we pre-install Win7/8/10 OS for testing only, If you need legal genuine Win7/8/10 OS or other OS like Linux, Ubuntu,Pfsense..., please contact us in time.
I/O Port	4 x USB3.0 2 x USB2.0 6 x DB9 COM (2 x RS232,4 x RS232/422/485) 1 x LPT 1 x HD 1 x VGA 1 x PS2（Keyboard and mouse 2 in 1） 14 x GPIO (7 x Input,7 x Output) 1 x Power Button, 1 x Reset Button，1 x Clear CMOS Button 1 x 3 pins Phoenix power switch (supporting 9-36v power input) 1 x MIC and SPK 1 x DIP switch (support ATX/AT power on mode selection) 2 x antenna interface (For WIFI / 3G / 4G)
LAN	2 x GbE RJ45 In tel i211/i210
Extension	1half height Mini-PCIe for WIFI/BT 1 full height Mini-PCIe for 3G/4G/WIFI/BT 1SIM card slot 1 extension I/O,support LPC/USB/PCIE
Power Requirement	Power Input Vol: 9-36V
Working Environment	Operating Temperature -20℃ to +60℃ Storage Temperature -30℃ to +70℃ Relative Humidity 10%~90% @30℃ (non-condensing)
Dimension	249 x 150 x 86 mm
Package Contents	1 x Mini PC 1 x User manual 1 x Power Cord 1 x SATA data and power cable

Notice:

1、Barebone is without wifi.Other options with RAM SSD we provide WIFI module, but not including 3G / 4G / BT module 2、We install msata SSD and one DDR4 RAM by default,If you need M.2 NVMe 2280 SSD or any other demands,please kindly contact us.

Company Profile

Shenzhen Helor Cloud Computer Co,. ltd(HLY) ,located in Shenzhen, Guangdong and specialized in mini computer since 2013, has our own professional motherboard manufacturer.Developed more than 50 kinds of own products, applied in different fields for AI, office working, education, entertainment, advertising, transport, military, industrial, etc....Our mini pc had sold in more than 60 countries and regions, annual sales exceed one million units. HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control, thereby HLY can offer the leading edge device, the latest technological developments as well as best prices to our clients.

We have more than 100 employees. Experienced technical group , reliable and dedicated sales department and responsible production team constitute the backbone of our enterprise.Our well-selected components and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Our engineers are outstanding in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.So ODM\OEM is highly welcome.From design, production and installation to excellent after-sales, HLY clients are assured of the highest level of quality and service.

Packaging&Shipping

① Power adapter:

We have multiple specifications of power supplies, which are selected by default based on your shipping address.If you have special demands, please contact us in time.
EU,UK,US,AU,Brazil,etc.

② Payment:

We are supporting L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

③ Packaging：

We carefully wrapped the mini pc and the parts with a waterproof bag,then fix it in the inner carton box with a foam board.Put the inner box into the outer box, and then seal the outer box with tape .

④ Shipping Methods:

Shipping by DHL, FedEx, UPS, Aramex, post and Alibaba, and negotiation. ( choose as you prefer)

FAQ

1,How about the waranty?
A:The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.

2,Can i print my logo on your mini pc?
A:Yes,please provide your logo file, and we will confirm the design effect to you before production.we also doing OEM\ODM.

3,What is the MOQ?
A:We can sell one sample for your test.

4,How long the package will ready after I buy the mini pc?
A: It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. More information please kindly check with us.

5,Are your mini pc in stock?
A:Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
